Check Bus 7 Line [11/2023 - ]: Procedure

  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Measure the resistance according to the value(s) in the table below.

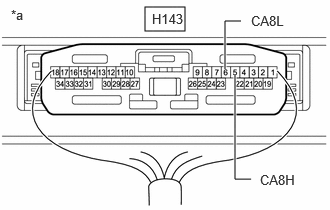

      GTY1180354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H143-6 (CA8L) Cable disconnected from negative (-) battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1180354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H143-6 (CA8L) Cable disconnected from negative (-) battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

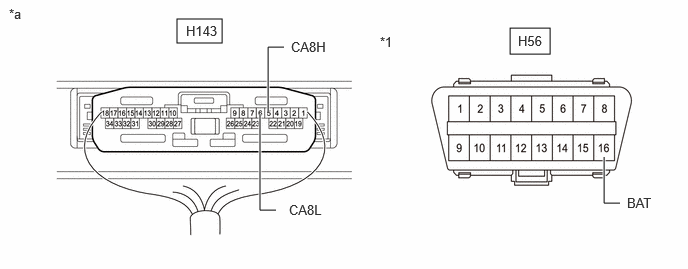

      GTY1179435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H56-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      H143-6 (CA8L) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

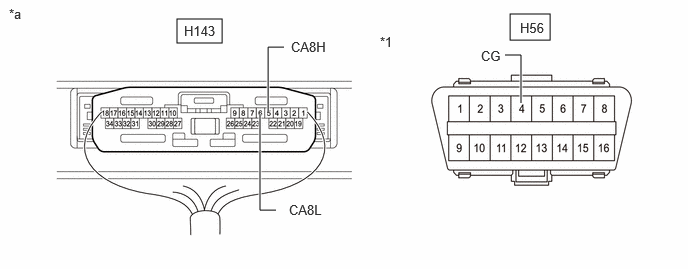

      GTY1178744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H56-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      H143-6 (CA8L) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

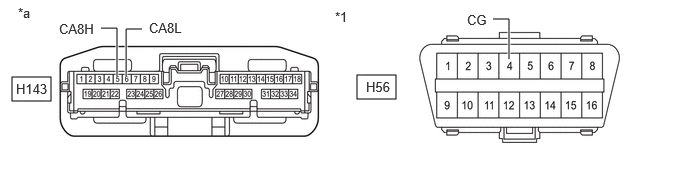

      GTY1178198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H56-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      H143-6 (CA8L) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the H142 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1178578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H142-2 (CAN+) - H56-4 (CG) Cable disconnected from negative (-) battery terminal 200 Ω or higher
      H142-1 (CAN-) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  7. CHECK FOR SHORT TO +B IN CAN BUS LINE (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.

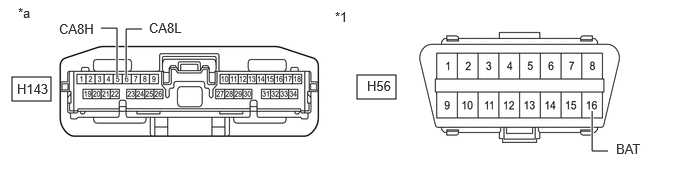

      GTY1177757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H56-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      H143-6 (CA8L) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    See step  8

  8. CHECK FOR SHORT TO +B IN CAN BUS LINE (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Disconnect the H142 option connector (bus buffer ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1178579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H142-2 (CAN+) - H56-16 (BAT) Cable disconnected from negative (-) battery terminal 6 kΩ or higher
      H142-1 (CAN-) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  9. CHECK FOR SHORT IN CAN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H143-6 (CA8L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    See step  10

  10. CHECK FOR SHORT IN CAN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the H142 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1178447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H142-2 (CAN+) - H142-1 (CAN-) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  11. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-5 (CA8H) - H143-6 (CA8L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    See step  12

  12. CHECK FOR OPEN IN CAN MAIN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU))
    1. Reconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the H142 option connector (bus buffer ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1178444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Option Connector (Bus Buffer ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H142-2 (CAN+) - H142-1 (CAN-) Cable disconnected from negative (-) battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICES

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU) - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
