Parts Location [10/2021 - 10/2022]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | HEADLIGHT ECU SUB-ASSEMBLY RH (w/ AFS) |
| *3 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | INVERTER WITH CONVERTER ASSEMBLY |
| *5 | ECM | *6 | FORWARD RECOGNITION CAMERA |
| *7 | NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *8 | RACK AND PINION POWER STEERING GEAR ASSEMBLY |
| *9 | HEADLIGHT ECU SUB-ASSEMBLY LH (w/ AFS) |
- | - |

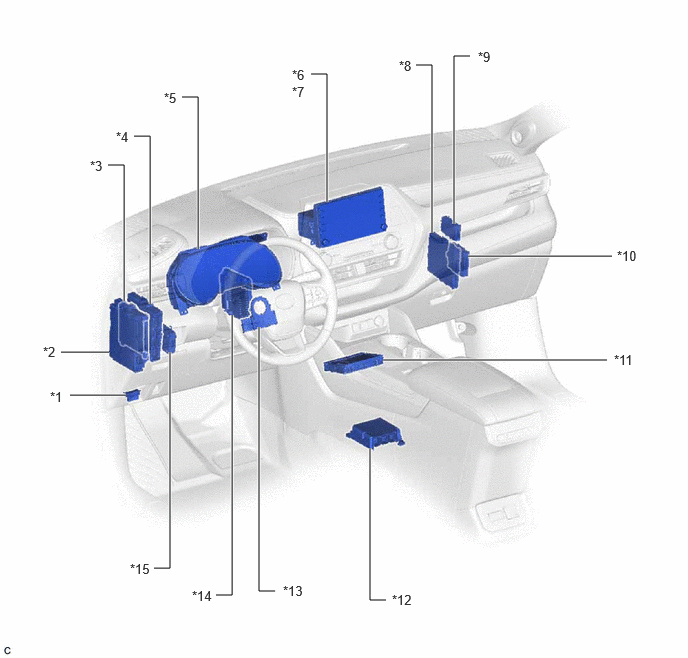

| *1 | DLC3 | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | HYBRID VEHICLE CONTROL ECU |
| *5 | COMBINATION METER ASSEMBLY | *6 | RADIO RECEIVER ASSEMBLY (for 12.3 Inch Display) |
| *7 | RADIO AND DISPLAY RECEIVER ASSEMBLY (for 8 Inch Display) |
*8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *10 | CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System) |
| *11 | DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver) |
*12 | AIRBAG SENSOR ASSEMBLY |
| *13 | STEERING SENSOR | *14 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
| *15 | VEHICLE APPROACHING SPEAKER CONTROLLER | - | - |
| *1 | NO. 1 GLOBAL CAN JUNCTION CONNECTOR | *2 | NO. 2 GLOBAL CAN JUNCTION CONNECTOR |
| *3 | METER MIRROR SUB-ASSEMBLY (w/ Headup Display System) |
*4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | NO. 4 GLOBAL CAN JUNCTION CONNECTOR | *6 | NO. 5 GLOBAL CAN JUNCTION CONNECTOR |
| *7 | NO. 3 GLOBAL CAN JUNCTION CONNECTOR | *8 | NO. 7 GLOBAL CAN JUNCTION CONNECTOR |
| *9 | OCCUPANT DETECTION ECU | *10 | INTEGRATION CONTROL SUB-ASSEMBLY (w/ Toyota Multi Operation Touch System) |
| *11 | YAW RATE SENSOR | - | - |
| *1 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
*2 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory System) |
| *3 | NO. 1 CAN JUNCTION TERMINAL | *4 | NO. 8 GLOBAL CAN JUNCTION CONNECTOR |
| *5 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System or Panoramic View Monitor System) |
*6 | MULTIPLEX NETWORK DOOR ECU |
| *7 | BLIND SPOT MONITOR SENSOR LH | *8 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *9 | NO. 10 GLOBAL CAN JUNCTION CONNECTOR | *10 | NO. 9 GLOBAL CAN JUNCTION CONNECTOR |
| *11 | POSITION CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
- | - |
