Parts Location [11/2024 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

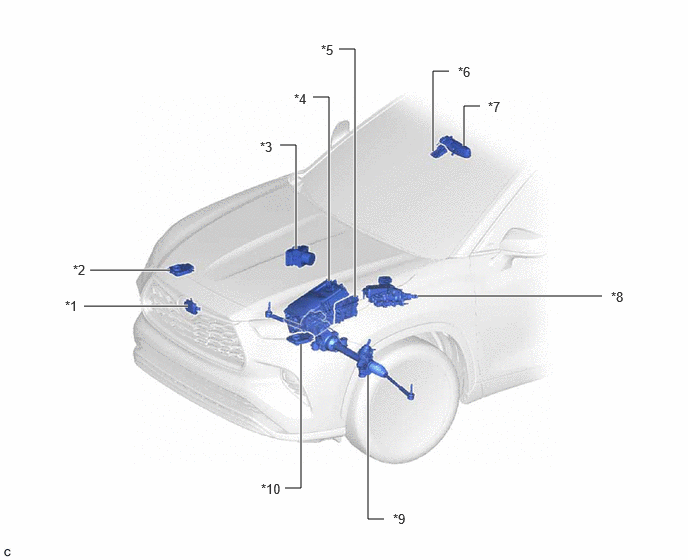

| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | HEADLIGHT ECU SUB-ASSEMBLY RH (w/ AFS) |
| *3 | NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *4 | INVERTER WITH CONVERTER ASSEMBLY |
| *5 | ECM | *6 | FORWARD RECOGNITION CAMERA |
| *7 | INNER REAR VIEW MIRROR ASSEMBLY (w/ Digital Inner Mirror System) |
*8 | NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |
| *9 | RACK AND PINION POWER STEERING GEAR ASSEMBLY | *10 | HEADLIGHT ECU SUB-ASSEMBLY LH (w/ AFS) |

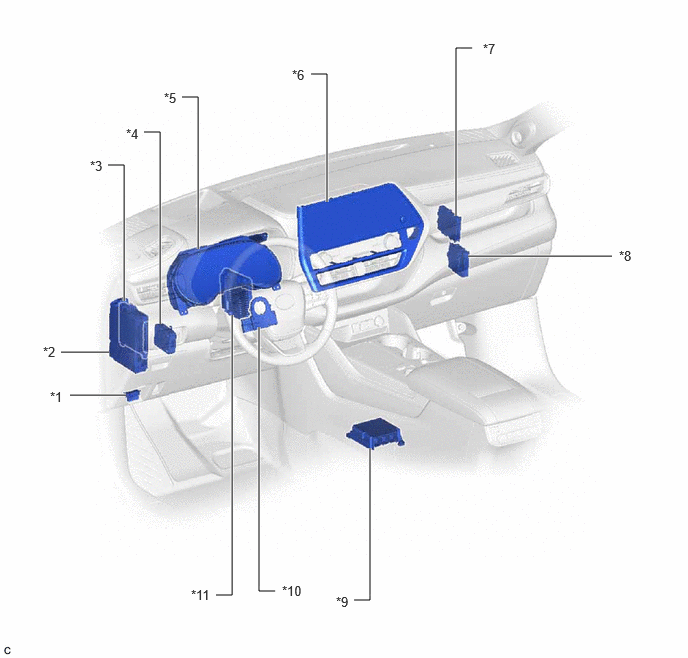

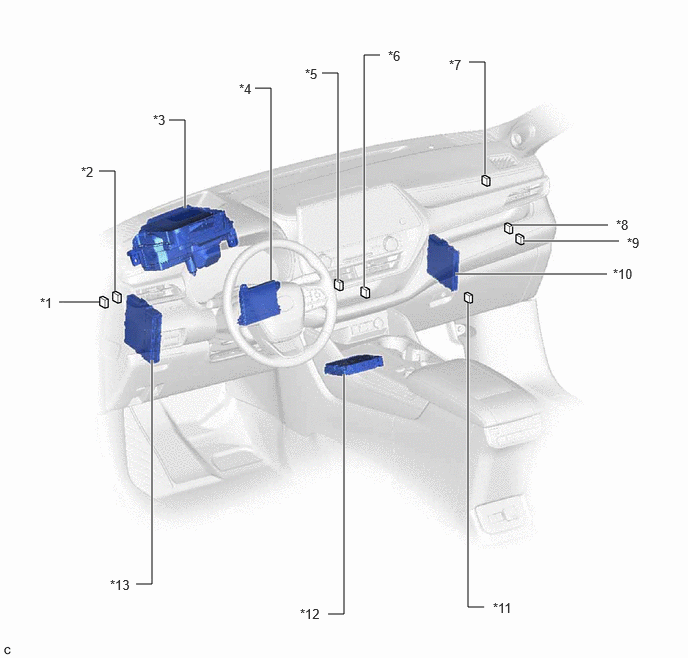

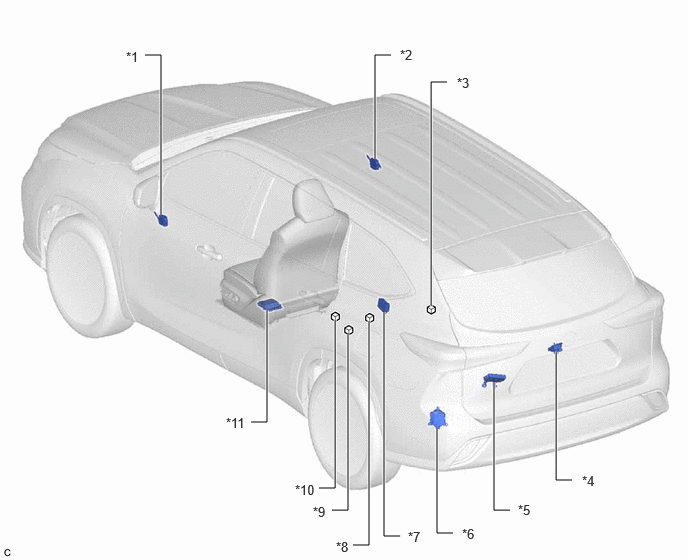

| *1 | DLC3 | *2 | POWER DISTRIBUTION BOX ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | VEHICLE APPROACHING SPEAKER CONTROLLER |
| *5 | COMBINATION METER ASSEMBLY | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
| *7 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *8 | CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System) |
| *9 | AIRBAG SENSOR ASSEMBLY | *10 | STEERING SENSOR |
| *11 | PARKING ASSIST ECU (w/ Panoramic View Monitor System) |
- | - |
| *1 | NO. 1 GLOBAL CAN JUNCTION CONNECTOR | *2 | NO. 2 GLOBAL CAN JUNCTION CONNECTOR |
| *3 | METER MIRROR SUB-ASSEMBLY (w/ Headup Display System) |
*4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | NO. 4 GLOBAL CAN JUNCTION CONNECTOR | *6 | NO. 5 GLOBAL CAN JUNCTION CONNECTOR |
| *7 | NO. 3 GLOBAL CAN JUNCTION CONNECTOR | *8 | NO. 7 GLOBAL CAN JUNCTION CONNECTOR |
| *9 | NO. 12 GLOBAL CAN JUNCTION CONNECTOR | *10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *11 | OPTION CONNECTOR (BUS BUFFER ECU) | *12 | DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver) |
| *13 | HYBRID VEHICLE CONTROL ECU | - | - |
| *1 | OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
*2 | OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory System) |
| *3 | NO. 1 CAN JUNCTION TERMINAL | *4 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
| *5 | MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door System) |
*6 | BLIND SPOT MONITOR SENSOR LH (B) (w/ Blind Spot Monitor System) |
| *7 | TIRE PRESSURE WARNING ECU AND RECEIVER | *8 | NO. 10 GLOBAL CAN JUNCTION CONNECTOR |
| *9 | NO. 13 GLOBAL CAN JUNCTION CONNECTOR | *10 | NO. 9 GLOBAL CAN JUNCTION CONNECTOR |
| *11 | POSITION CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System) |
- | - |
