Radio Receiver Assembly Communication Stop Mode [12/2019 - 10/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

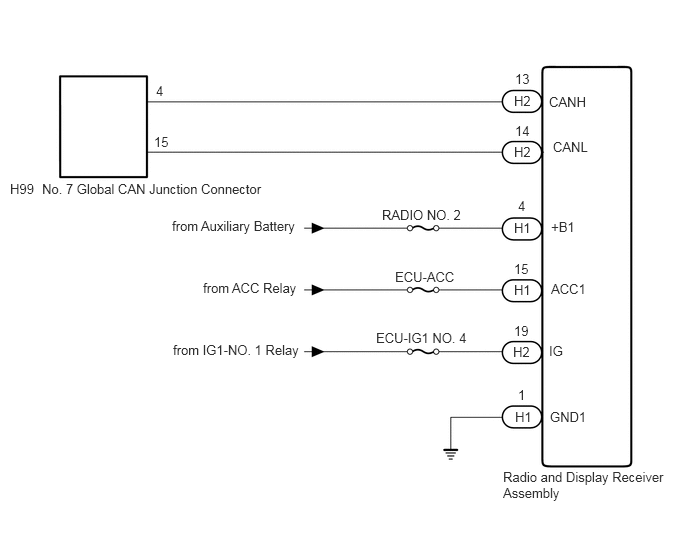

for 8 Inch Display

GTY854145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

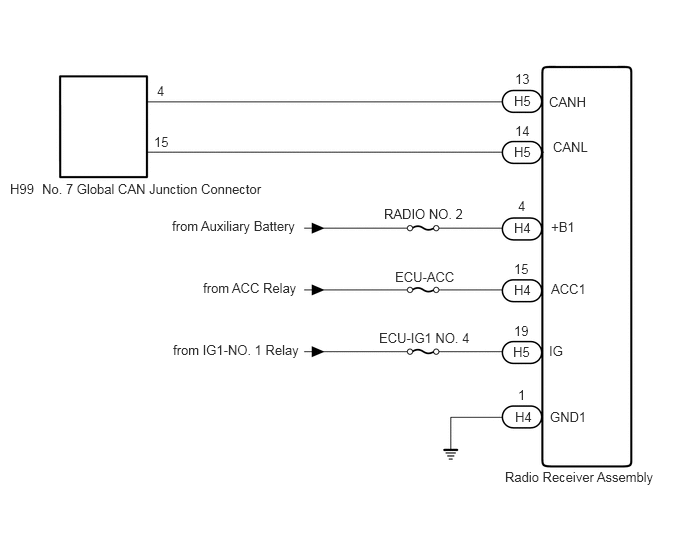

for 12.3 Inch Display

GTY929708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
