Radio Receiver Assembly Communication Stop Mode [12/2019 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for 8 Inch Display A
      for 12.3 Inch Display B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (RADIO AND DISPLAY RECEIVER ASSEMBLY BRANCH LINE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the H2 radio and display receiver assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H2-13 (CANH) - H2-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      GTY917724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio and Display Receiver Assembly)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Disconnect the H1 radio and display receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY933447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio and Display Receiver Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H1-1 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
    3. Reconnect the cable to the negative (-) auxiliary battery terminal.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      H2-19 (IG) - Body ground Ignition switch ON 11 to 14 V
      H1-4 (+B1) - Body ground Ignition switch off 11 to 14 V
      H1-15 (ACC1) - Body ground Ignition switch ACC 11 to 14 V

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

  4. CHECK FOR OPEN IN CAN BUS LINES (RADIO RECEIVER ASSEMBLY BRANCH LINE)
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the H5 radio receiver assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      H5-13 (CANH) - H5-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω

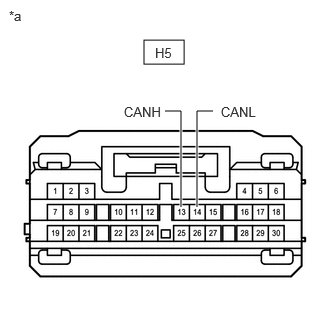

      GTY917728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)

      Result

      Result
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (RADIO RECEIVER ASSEMBLY)

    Result:

    OK

    See step  5

  5. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Disconnect the H4 radio receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

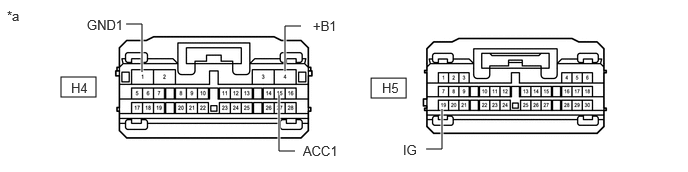

      GTY871206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H4-1 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
    3. Reconnect the cable to the negative (-) auxiliary battery terminal.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      H5-19 (IG) - Body ground Ignition switch ON 11 to 14 V
      H4-4 (+B1) - Body ground Ignition switch off 11 to 14 V
      H4-15 (ACC1) - Body ground Ignition switch ACC 11 to 14 V

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
