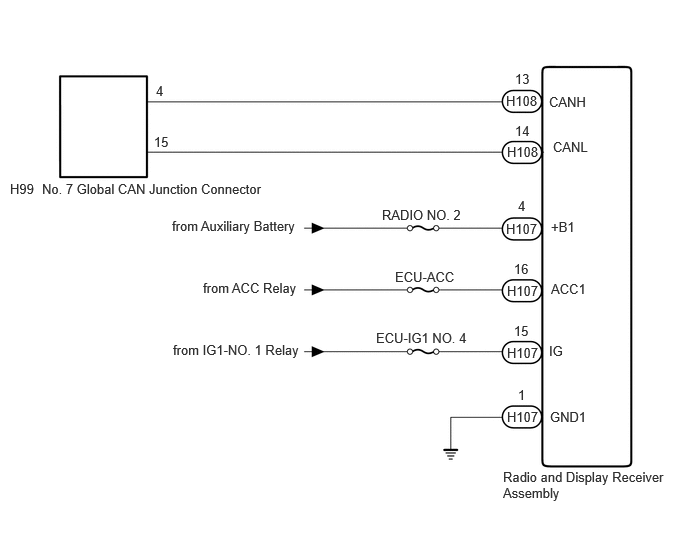

Radio Receiver Assembly Communication Stop Mode [10/2022 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1115264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
