Section 119 (Can Communication System (HV) - Circuit Tests (2 Of 9))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Headup Display Communication Stop Mode [12/2019 - 11/2023]
>>
Wiring Diagram

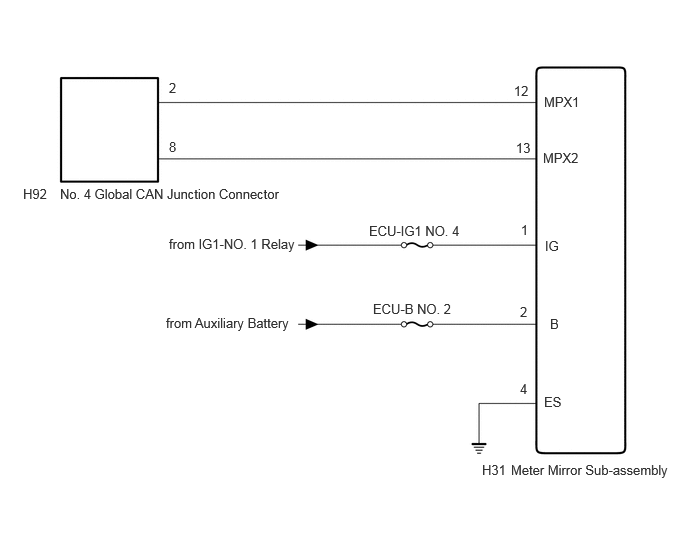

Headup Display Communication Stop Mode [12/2019 - 11/2023]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
