Motor Generator Control ECU Communication Stop Mode [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

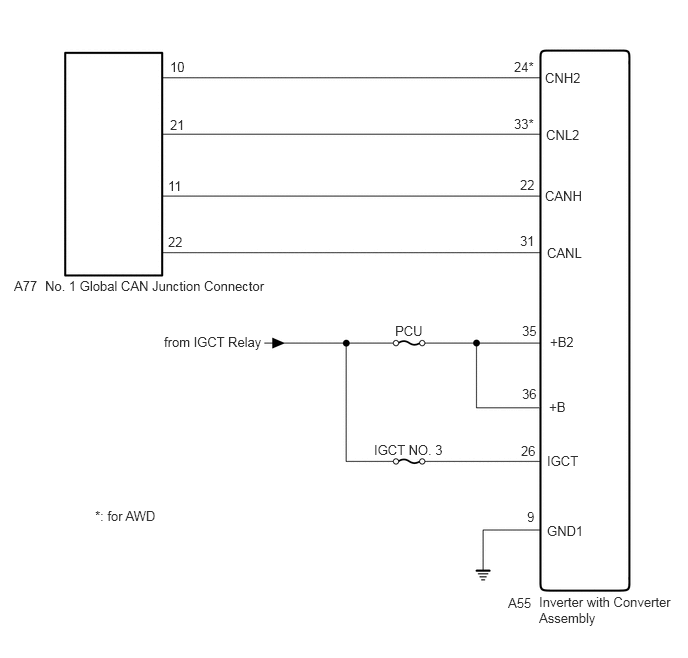

GTY924552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
