Check Bus 5 Line [11/2023 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

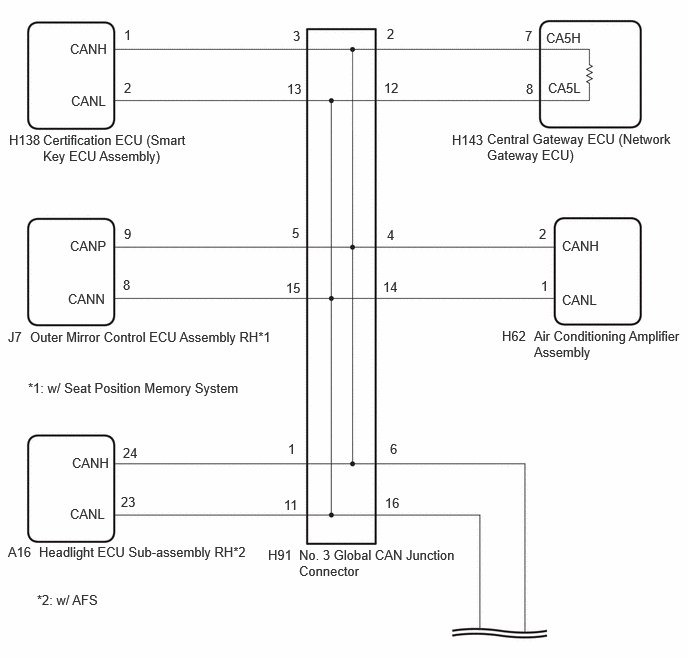

GTY1179340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

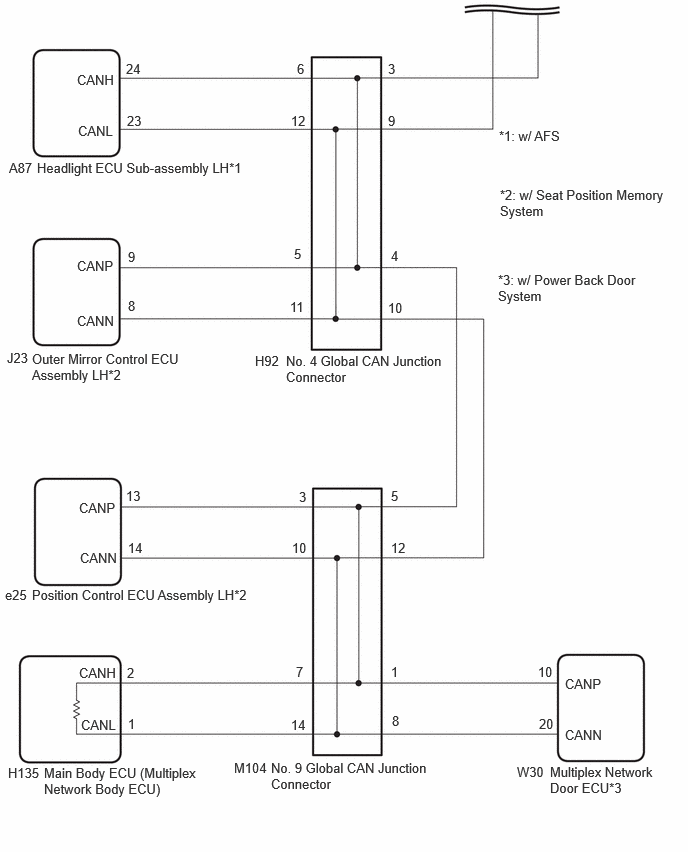

GTY1178862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
