Check Bus 4 Line [12/2019 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

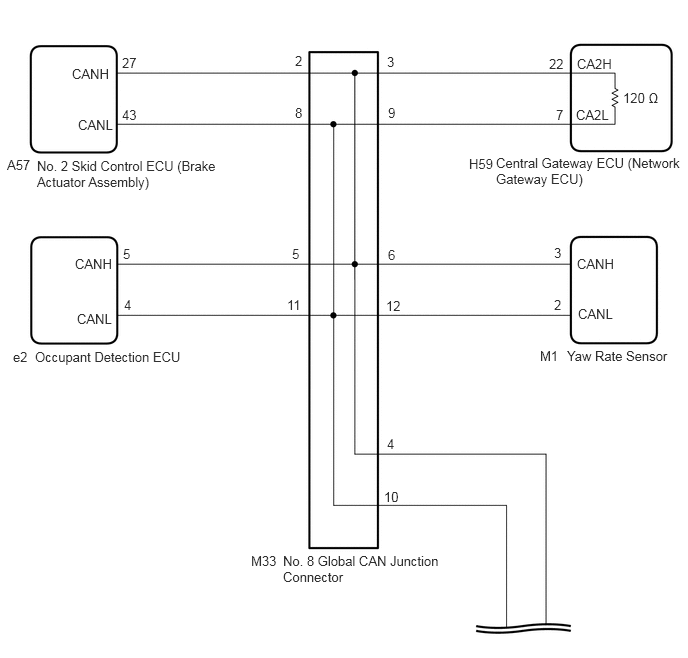

GTY943950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

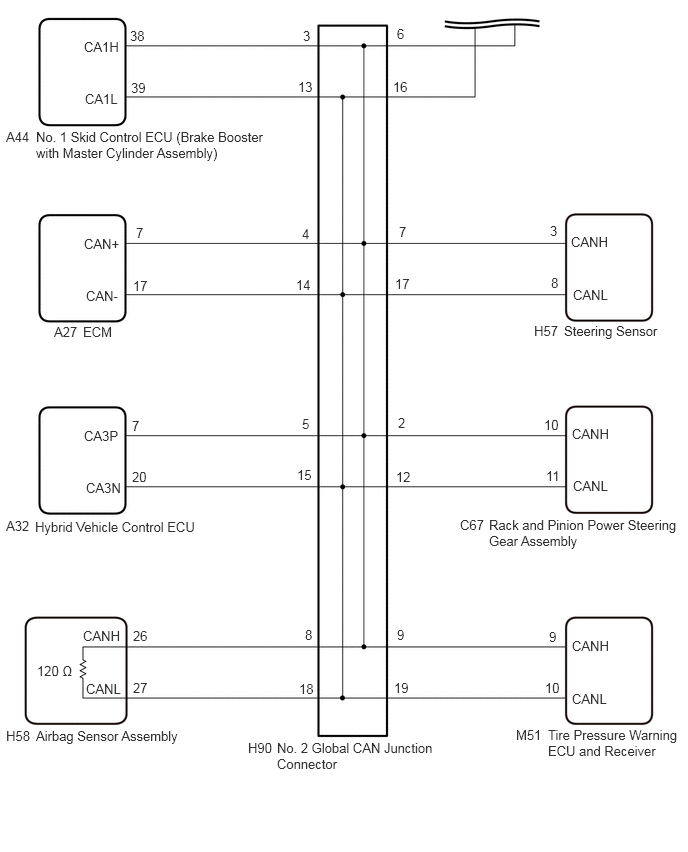

GTY849440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
