Check Bus 4 Line [11/2023 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

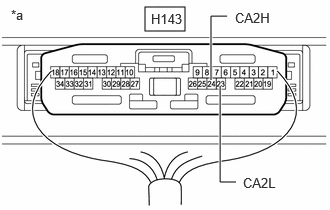

  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1180343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-24 (CA2H) - H143-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  47

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY1180343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-24 (CA2H) - H143-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  33

    Result:

    OK

    See step  3

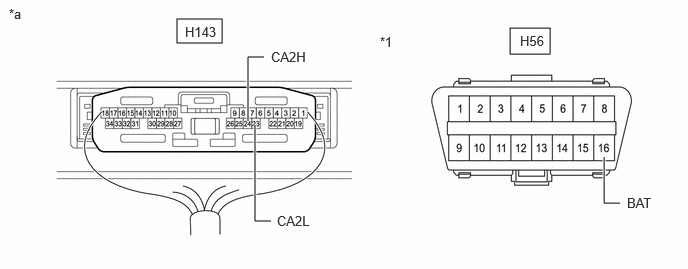

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1178776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-24 (CA2H) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H143-23 (CA2L) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  19

    Result:

    OK

    See step  4

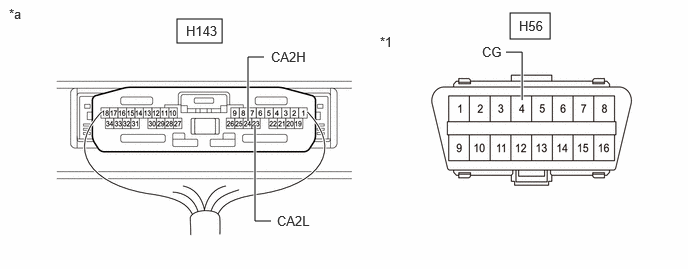

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.
      GTY1178777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-24 (CA2H) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H143-23 (CA2L) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the A92 No. 12 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1180115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

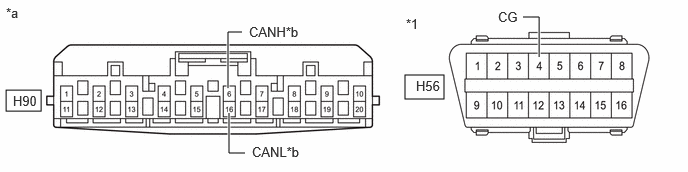

      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-10 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A92-21 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1180116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-11 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A92-22 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  7

  7. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Skid Control ECU (Brake Actuator Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-9 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A92-20 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  9

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1180115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-10 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A92-21 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  9. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
    1. Disconnect the A57 No. 2 skid control ECU (brake actuator assembly) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Skid Control ECU (Brake Actuator Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-9 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A92-20 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

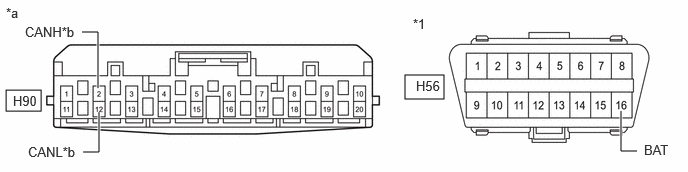

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the H90 No. 2 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 12 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-6 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-16 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  11

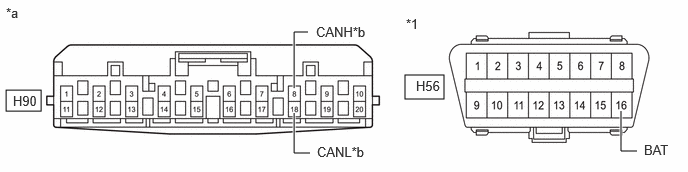

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Airbag Sensor Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-8 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-18 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  15

    Result:

    OK

    See step  12

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition

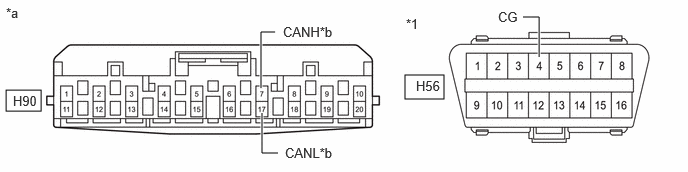

      H90-7 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-17 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  16

    Result:

    OK

    See step  13

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Rack and Pinion Power Steering Gear Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition

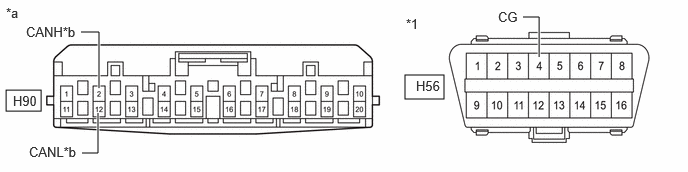

      H90-2 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-12 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  14

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 1 Skid Control ECU (Brake Booster with Master Cylinder Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition

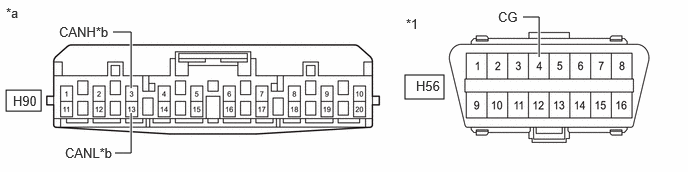

      H90-3 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-13 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  18

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)
    1. Disconnect the H58 airbag sensor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

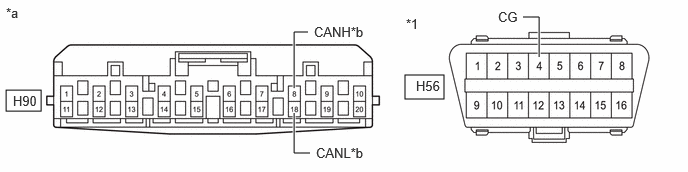

      GTY1179674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Airbag Sensor Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-8 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-18 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG SENSOR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Disconnect the H57 steering sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-7 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-17 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STEERING SENSOR

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)

  17. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Disconnect the C67 rack and pinion power steering gear assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Rack and Pinion Power Steering Gear Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-2 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-12 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RACK AND PINION POWER STEERING GEAR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)

  18. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
    1. Disconnect the A44 No. 1 skid control ECU (brake booster with master cylinder assembly) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 1 Skid Control ECU (Brake Booster with Master Cylinder Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-3 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H90-13 (CANL) - H56-4 (CG)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

  19. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the A92 No. 12 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1180117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-10 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A92-21 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  22

    Result:

    OK

    See step  20

  20. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1180118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-11 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A92-22 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  24

    Result:

    OK

    See step  21

  21. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1180176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Skid Control ECU (Brake Actuator Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-9 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A92-20 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  23

  22. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1180117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-10 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A92-21 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  23. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
    1. Disconnect the A57 No. 2 skid control ECU (brake actuator assembly) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1180176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Skid Control ECU (Brake Actuator Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-9 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A92-20 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

  24. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Disconnect the H90 No. 2 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.

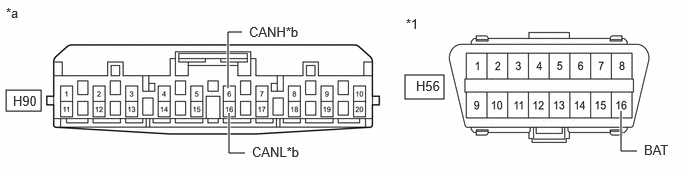

      GTY1179677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 12 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-6 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-16 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  25

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Airbag Sensor Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-8 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-18 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  29

    Result:

    OK

    See step  26

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

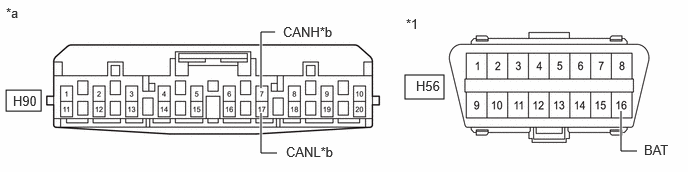

      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-7 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-17 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  30

    Result:

    OK

    See step  27

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Rack and Pinion Power Steering Gear Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-2 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-12 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  31

    Result:

    OK

    See step  28

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
    1. Measure the resistance according to the value(s) in the table below.

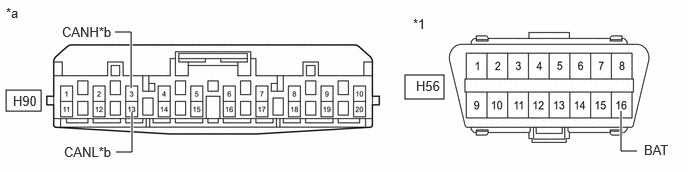

      GTY1179716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 1 Skid Control ECU (Brake Booster with Master Cylinder Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-3 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-13 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  32

  29. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)
    1. Disconnect the H58 airbag sensor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Airbag Sensor Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-8 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-18 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG SENSOR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)

  30. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Disconnect the H57 steering sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-7 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-17 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STEERING SENSOR

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)

  31. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Disconnect the C67 rack and pinion power steering gear assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Rack and Pinion Power Steering Gear Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-2 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-12 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RACK AND PINION POWER STEERING GEAR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)

  32. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
    1. Disconnect the A44 No. 1 skid control ECU (brake booster with master cylinder assembly) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 1 Skid Control ECU (Brake Booster with Master Cylinder Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-3 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H90-13 (CANL) - H56-16 (BAT)

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

  33. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the A92 No. 12 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-10 (CANH) - A92-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  36

    Result:

    OK

    See step  34

  34. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-11 (CANH) - A92-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  38

    Result:

    OK

    See step  35

  35. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Skid Control ECU (Brake Actuator Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-9 (CANH) - A92-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  37

  36. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-10 (CANH) - A92-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  37. CHECK FOR SHORT IN CAN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))
    1. Disconnect the A57 No. 2 skid control ECU (brake actuator assembly) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Skid Control ECU (Brake Actuator Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-9 (CANH) - A92-20 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY))

  38. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A92 No. 12 global CAN junction connector.
    2. Disconnect the H90 No. 2 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1179787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 12 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-6 (CANH) - H90-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  39

  39. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Airbag Sensor Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-8 (CANH) - H90-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  43

    Result:

    OK

    See step  40

  40. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-7 (CANH) - H90-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  44

    Result:

    OK

    See step  41

  41. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Rack and Pinion Power Steering Gear Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-2 (CANH) - H90-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  45

    Result:

    OK

    See step  42

  42. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 1 Skid Control ECU (Brake Booster with Master Cylinder Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-3 (CANH) - H90-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  46

  43. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)
    1. Disconnect the H58 airbag sensor assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Airbag Sensor Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-8 (CANH) - H90-18 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE AIRBAG SENSOR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - AIRBAG SENSOR ASSEMBLY)

  44. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)
    1. Disconnect the H57 steering sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Steering Sensor

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-7 (CANH) - H90-17 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE STEERING SENSOR

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - STEERING SENSOR)

  45. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Disconnect the C67 rack and pinion power steering gear assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Rack and Pinion Power Steering Gear Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-2 (CANH) - H90-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RACK AND PINION POWER STEERING GEAR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)

  46. CHECK FOR SHORT IN CAN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))
    1. Disconnect the A44 No. 1 skid control ECU (brake booster with master cylinder assembly) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 1 Skid Control ECU (Brake Booster with Master Cylinder Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-3 (CANH) - H90-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 1 SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY))

  47. CHECK FOR OPEN IN CAN MAIN BUS LINES (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY1179292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H143-24 (CA2H) - H143-23 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    See step  48

  48. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Reconnect the H143 central gateway ECU (network gateway ECU) connector.
    2. Disconnect the A92 No. 12 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1179553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-10 (CANH) - A92-21 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

    Result:

    OK

    See step  49

  49. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 12 GLOBAL CAN JUNCTION CONNECTOR - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 12 Global CAN Junction Connector)      		 *b to No. 2 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      A92-11 (CANH) - A92-22 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 12 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  50

  50. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)
    1. Reconnect the A92 No. 12 global CAN junction connector.
    2. Disconnect the H90 No. 2 global CAN junction connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY1179787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to No. 12 Global CAN Junction Connector

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-6 (CANH) - H90-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - NO. 12 GLOBAL CAN JUNCTION CONNECTOR)

    Result:

    OK

    See step  51

  51. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 2 GLOBAL CAN JUNCTION CONNECTOR - RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY1179789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 2 Global CAN Junction Connector)      		 *b to Rack and Pinion Power Steering Gear Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H90-2 (CANH) - H90-12 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE NO. 2 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  52

  52. CHECK FOR OPEN IN CAN MAIN BUS LINES (RACK AND PINION POWER STEERING GEAR ASSEMBLY)
    1. Reconnect the H90 No. 2 global CAN junction connector.
    2. Disconnect the C67 rack and pinion power steering gear assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY917662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Rack and Pinion Power Steering Gear Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      C67-10 (CANH) - C67-11 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE RACK AND PINION POWER STEERING GEAR ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (RACK AND PINION POWER STEERING GEAR ASSEMBLY - NO. 2 GLOBAL CAN JUNCTION CONNECTOR)

Diesel-Data.com
