Section 132 (Can Communication System (HV) - Circuit Tests (5 Of 9))
>>
CAN COMMUNICATION SYSTEM (for HV Model)
>>
Check Bus 2 Line [11/2024 - ]
>>

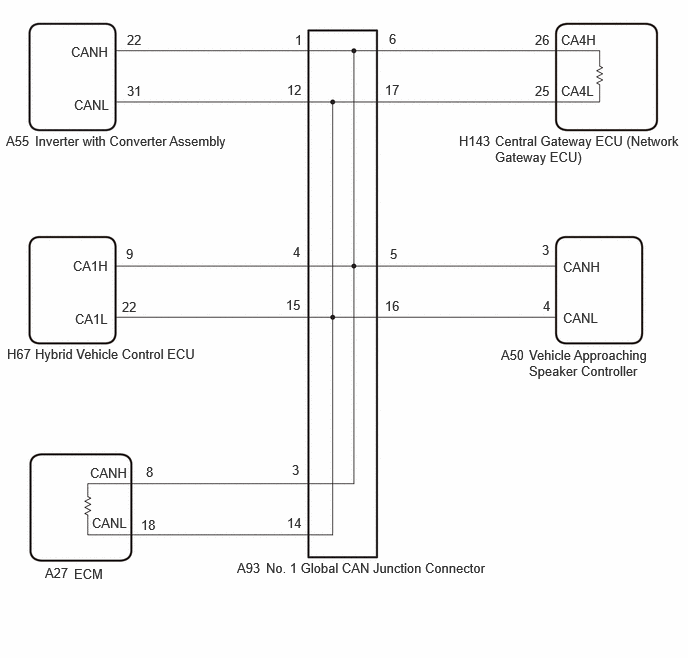

Wiring Diagram
Check Bus 2 Line [11/2024 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
