Check Bus 3 Line [12/2019 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. CHECK FOR OPEN IN CAN MAIN BUS LINES
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      GTY848026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H59-6 (CA3H) - H59-21 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  41

    Result:

    OK

    See step  2

  2. CHECK FOR SHORT IN CAN BUS LINES
    1. Measure the resistance according to the value(s) in the table below.
      GTY848026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H59-6 (CA3H) - H59-21 (CA3L) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  29

    Result:

    OK

    See step  3

  3. CHECK FOR SHORT TO +B IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

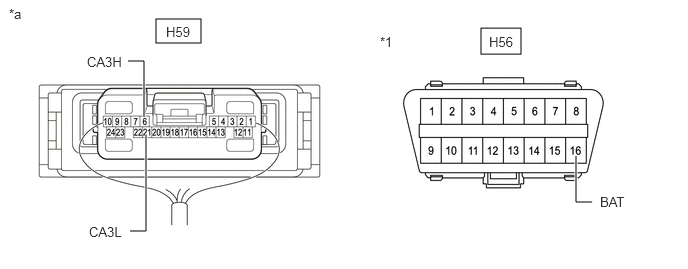

      GTY850187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H59-6 (CA3H) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H59-21 (CA3L) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  17

    Result:

    OK

    See step  4

  4. CHECK FOR SHORT TO GND IN CAN BUS LINE
    1. Measure the resistance according to the value(s) in the table below.

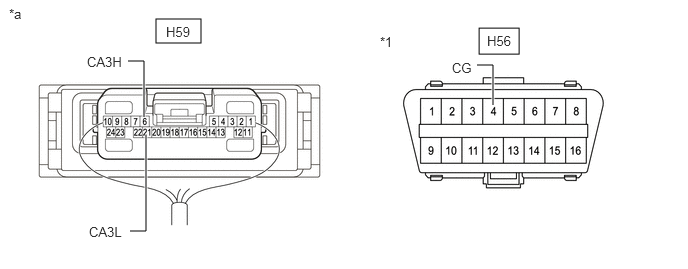

      GTY928833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Component with harness connected
      (Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      H59-6 (CA3H) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H59-21 (CA3L) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    See step  5

  5. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H99 No. 7 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-13 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  11

    Result:

    OK

    See step  6

  6. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.

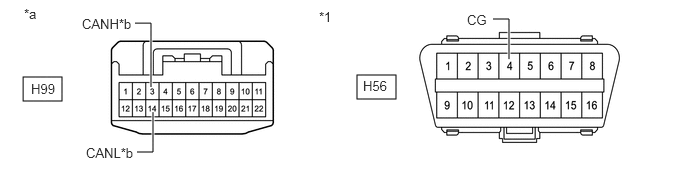

      GTY905941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-14 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  12

    Result:

    OK

    See step  7

  7. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    Result:

    B

    See step  9

    Result:

    A

    See step  8

  8. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Measure the resistance according to the value(s) in the table below.

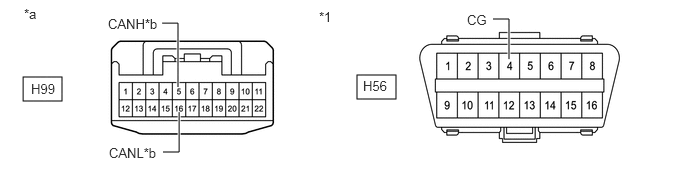

      GTY905942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to DCM (Telematics Transceiver)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-5 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-16 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  13

    Result:

    OK

    See step  9

  9. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for 8 Inch Display A
      for 12.3 Inch Display B

    Result:

    B

    See step  15

    Result:

    A

    See step  10

  10. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

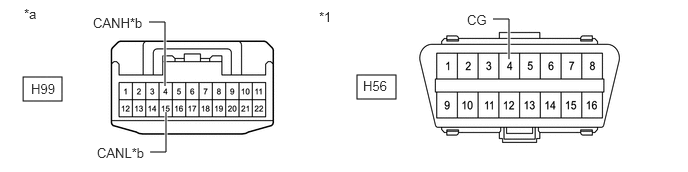

      GTY941116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio and Display Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-15 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  14

  11. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-13 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  12. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-14 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  13. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the H11 DCM (telematics transceiver) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to DCM (Telematics Transceiver)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-5 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-16 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE DCM (TELEMATICS TRANSCEIVER)

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

  14. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Disconnect the H2 radio and display receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY941116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio and Display Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-15 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

  15. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY941116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-15 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  16

  16. CHECK FOR SHORT TO GND IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)
    1. Disconnect the H5 radio receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY941116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      H99-15 (CANL) - H56-4 (CG)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)

  17. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H99 No. 7 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-13 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  23

    Result:

    OK

    See step  18

  18. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.

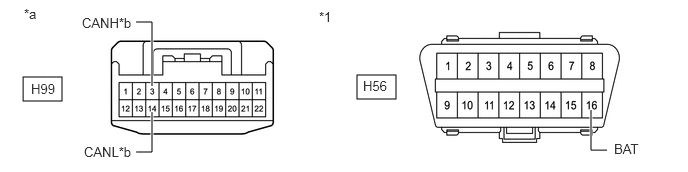

      GTY905936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-14 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  24

    Result:

    OK

    See step  19

  19. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    Result:

    B

    See step  21

    Result:

    A

    See step  20

  20. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Measure the resistance according to the value(s) in the table below.
      GTY941115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to DCM (Telematics Transceiver)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-5 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-16 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  25

    Result:

    OK

    See step  21

  21. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for 8 Inch Display A
      for 12.3 Inch Display B

    Result:

    B

    See step  27

    Result:

    A

    See step  22

  22. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY905933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio and Display Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-15 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  26

  23. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-13 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  24. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-14 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  25. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the H11 DCM (telematics transceiver) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY941115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to DCM (Telematics Transceiver)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-5 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-16 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE DCM (TELEMATICS TRANSCEIVER)

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

  26. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Disconnect the H2 radio and display receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio and Display Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-15 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

  27. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY905933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-15 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  28

  28. CHECK FOR SHORT TO +B IN CAN BUS LINE (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)
    1. Disconnect the H5 radio receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY905933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H56-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      H99-15 (CANL) - H56-16 (BAT)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)

  29. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H99 No. 7 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY922607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H99-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  35

    Result:

    OK

    See step  30

  30. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY944803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H99-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  36

    Result:

    OK

    See step  31

  31. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      w/ Telematics Transceiver A
      w/o Telematics Transceiver B

    Result:

    B

    See step  33

    Result:

    A

    See step  32

  32. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Measure the resistance according to the value(s) in the table below.
      GTY922606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to DCM (Telematics Transceiver)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-5 (CANH) - H99-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  37

    Result:

    OK

    See step  33

  33. CHECK VEHICLE TYPE
    1. Check vehicle type.

      Result

      Result Proceed to
      for 8 Inch Display A
      for 12.3 Inch Display B

    Result:

    B

    See step  39

    Result:

    A

    See step  34

  34. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY922605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio and Display Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H99-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  38

  35. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY922607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H99-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  36. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY944803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H99-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  37. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))
    1. Disconnect the H11 DCM (telematics transceiver) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY922606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to DCM (Telematics Transceiver)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-5 (CANH) - H99-16 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE DCM (TELEMATICS TRANSCEIVER)

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - DCM (TELEMATICS TRANSCEIVER))

  38. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)
    1. Disconnect the H2 radio and display receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY922605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio and Display Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H99-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO AND DISPLAY RECEIVER ASSEMBLY)

  39. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.
      GTY922605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H99-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  40

  40. CHECK FOR SHORT IN CAN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)
    1. Disconnect the H5 radio receiver assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY922605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Radio Receiver Assembly

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-4 (CANH) - H99-15 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE RADIO RECEIVER ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - RADIO RECEIVER ASSEMBLY)

  41. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H99 No. 7 global CAN junction connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY922607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H99-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    NG

    See step  44

    Result:

    OK

    See step  42

  42. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Measure the resistance according to the value(s) in the table below.
      GTY944803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b to Central Gateway ECU (Network Gateway ECU)

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H99-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE NO. 7 GLOBAL CAN JUNCTION CONNECTOR

    Result:

    NG

    See step  43

  43. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY930480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-3 (CANH) - H59-19 (CAYH) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      H99-14 (CANL) - H59-20 (CAYL)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

  44. CHECK FOR OPEN IN CAN MAIN BUS LINES (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
    1. Disconnect the H59 central gateway ECU (network gateway ECU) connector.
    2. Measure the resistance according to the value(s) in the table below.
      GTY857700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to No. 7 Global CAN Junction Connector)      		 *b Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))

      Standard Resistance

      Tester Connection Condition Specified Condition
      H99-2 (CANH) - H59-6 (CA3H) Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      H99-13 (CANL) - H59-21 (CA3L)

      Result

      Result
      OK
      NG

    Result:

    OK

    REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

    Refer to REMOVAL [12/2019 - 11/2023]

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (NO. 7 GLOBAL CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

Diesel-Data.com
