Check Bus 1 Line [11/2023 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

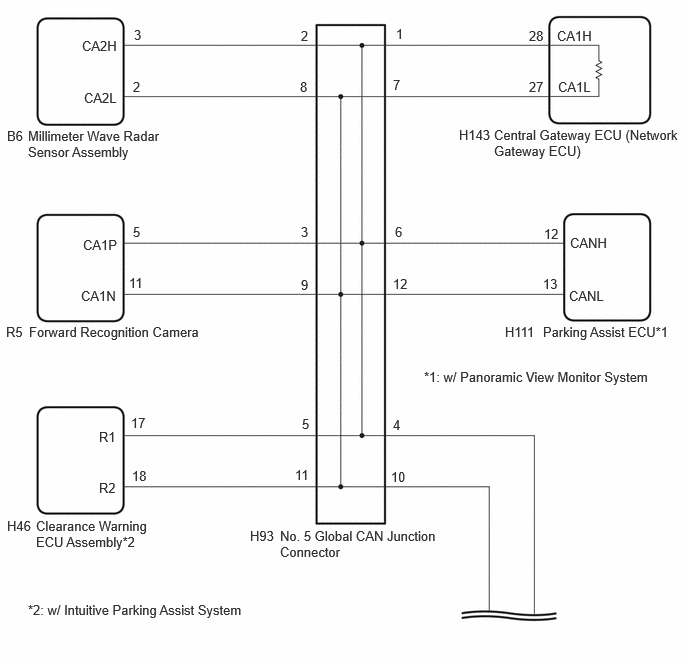

GTY1179150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

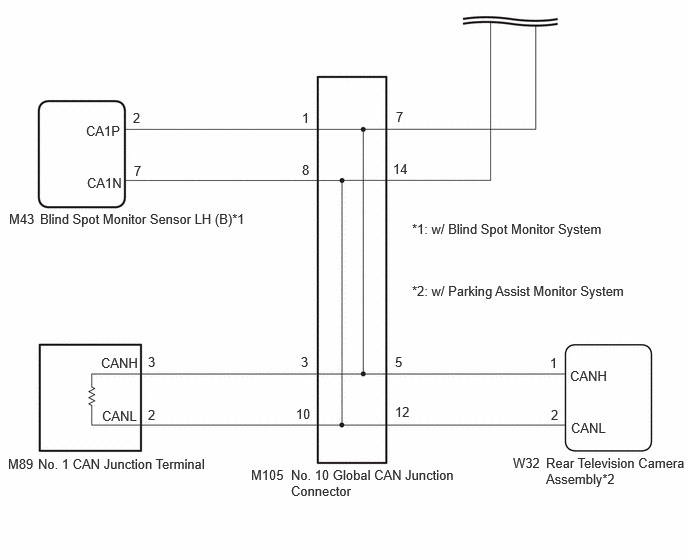

GTY1179249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
