Check Bus 5 Line [12/2019 - 10/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

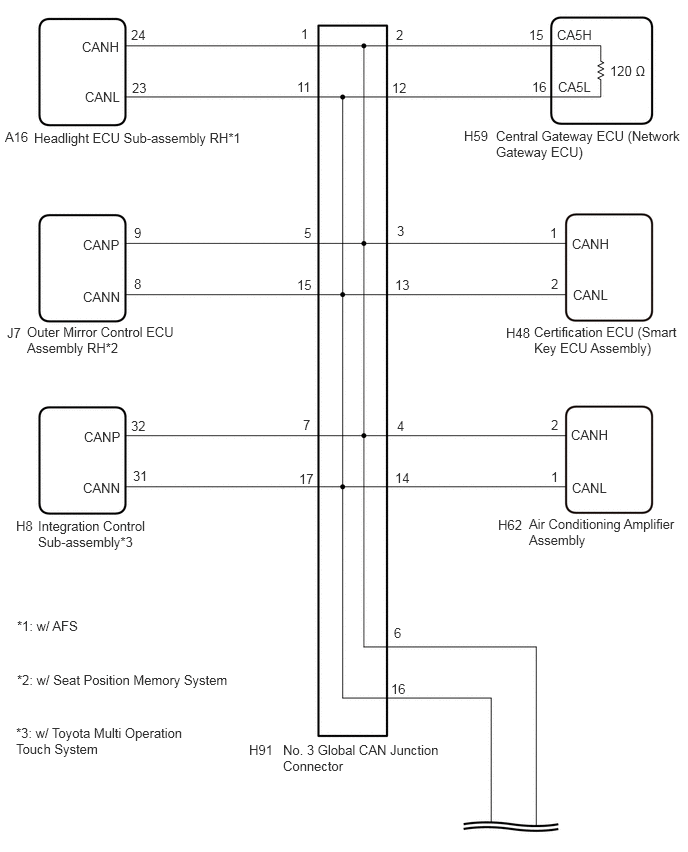

GTY876843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

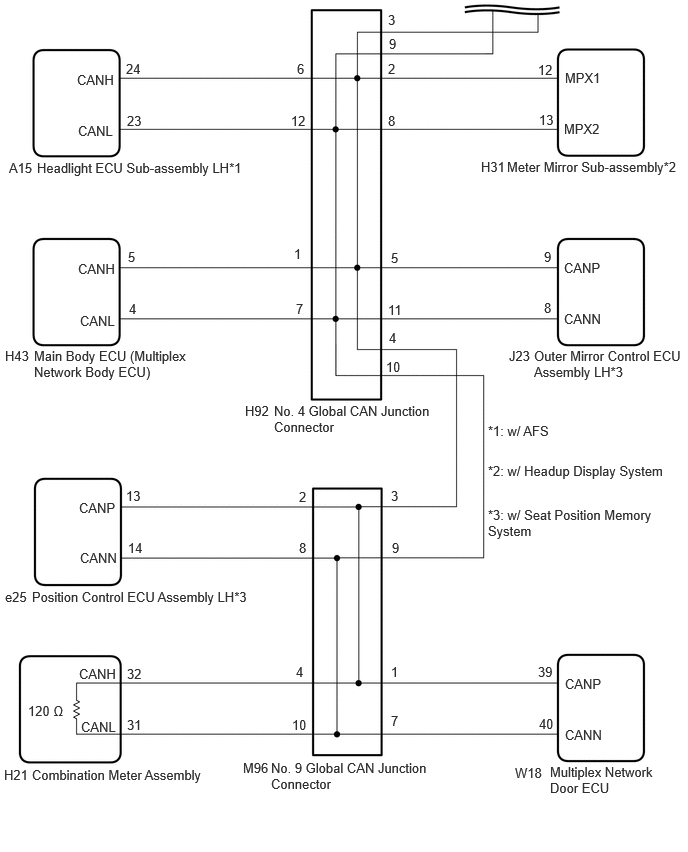

GTY872597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
