Check Bus 5 Line [10/2022 - 11/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

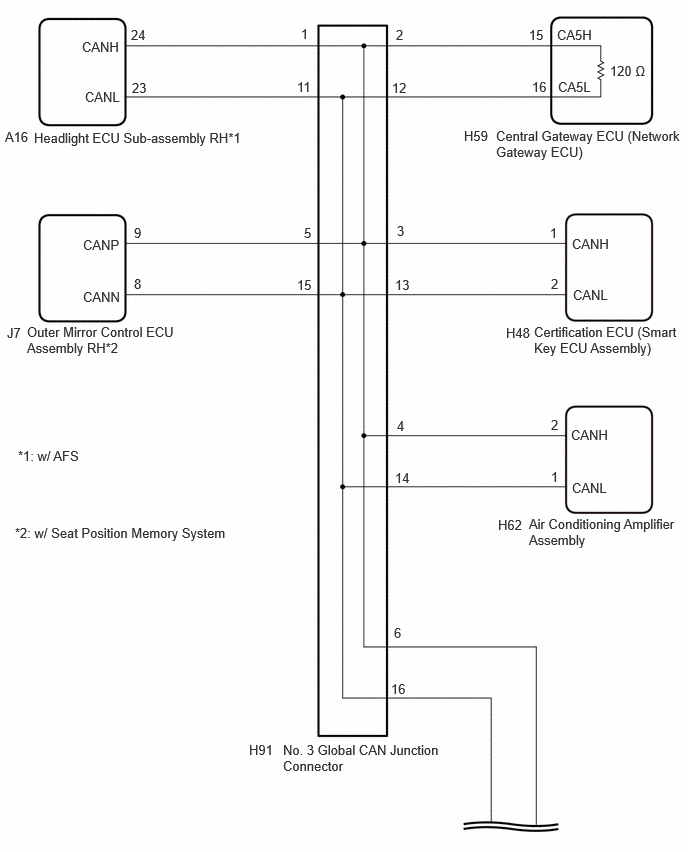

GTY1110586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

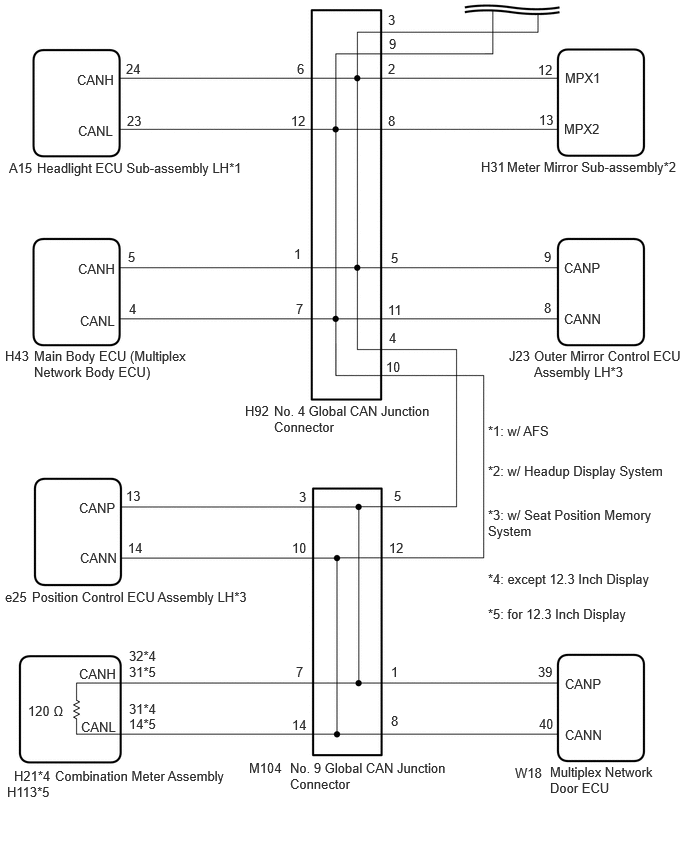

GTY1114632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
