Check Bus 1 Line [12/2019 - 10/2021]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

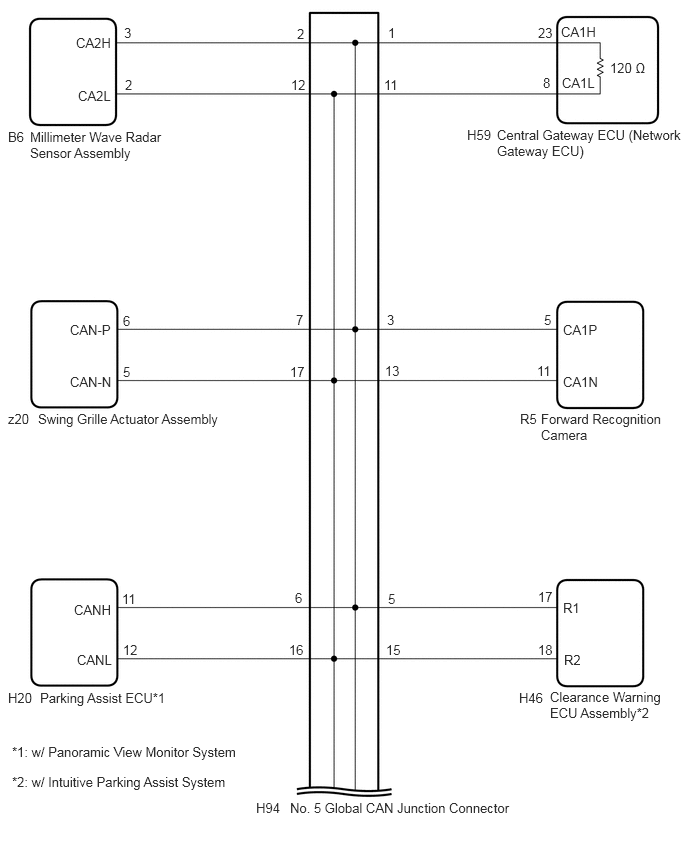

GTY885982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

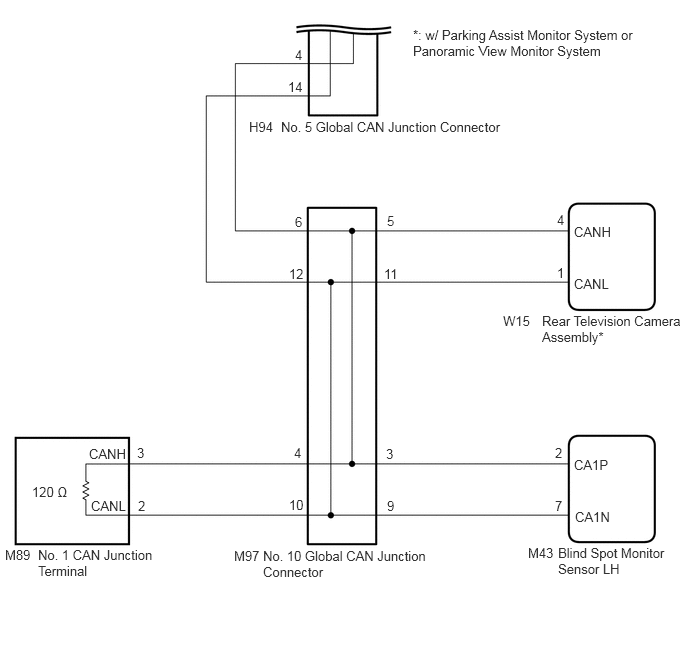

GTY880582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
