System Diagram [12/2019 - 10/2022]
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

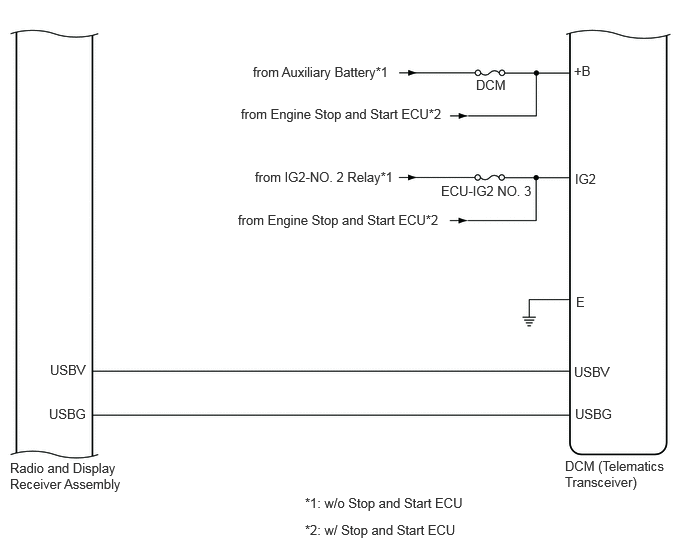

w/ Telematics Transceiver
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/o Telematics Transceiver
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/ Telematics Transceiver
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/ Rear View Monitor System or Parking Assist Monitor System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/ Rear Seat Entertainment System
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
w/o Stereo Component Amplifier Assembly
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

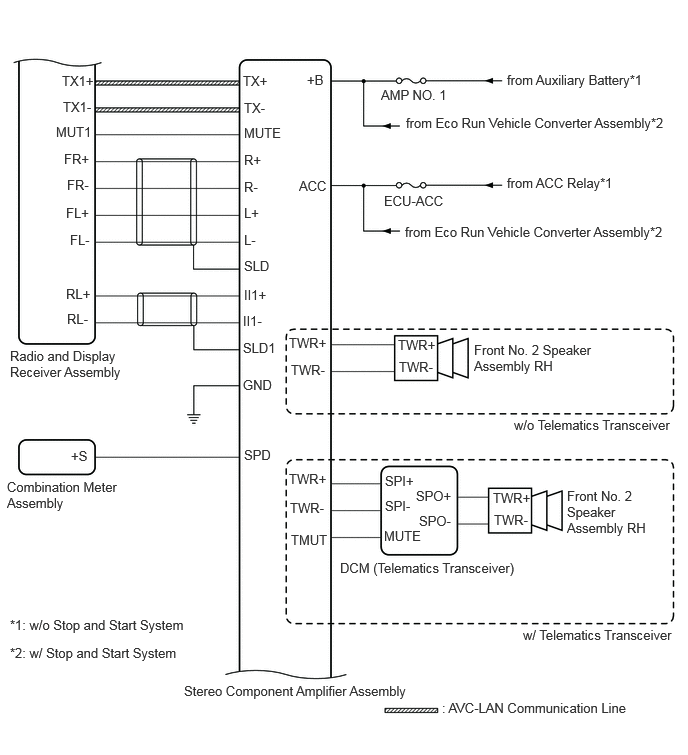

w/ Stereo Component Amplifier Assembly
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
