Removal [12/2019 - ]: Procedure

  1. REMOVE BACK DOOR SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 5 [11/2023 - ]

  2. REMOVE BACK DOOR SERVICE HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

    Refer to PROCEDURE - Step 7 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 7 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 7 [11/2023 - ]

  4. REMOVE BACK DOOR FINISH PANEL COVER

    Refer to PROCEDURE - Step 14 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 14 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 14 [11/2023 - ]

  5. REMOVE LICENSE PLATE LIGHT ASSEMBLY
    NOTE:

    If the license plate light assembly has been removed, replace the license plate light packing with a new one.

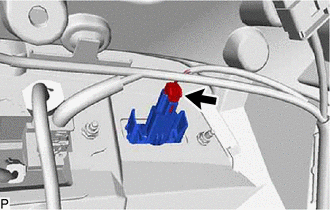

    1. Disconnect the connector.
      GTY921596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

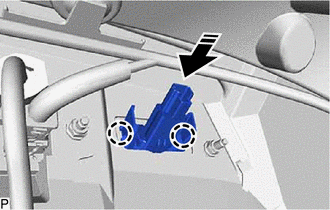

    2. Disengage the 2 claws to remove the license plate light assembly as shown in the illustration.
      GTY906776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  6. REMOVE LICENSE PLATE LIGHT PACKING
    1. Remove the license plate light packing.
      GTY943811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not reuse the removed license plate light packing. Be sure to install a new license plate light packing to prevent water ingress.

  7. REMOVE LICENSE PLATE LIGHT BULB

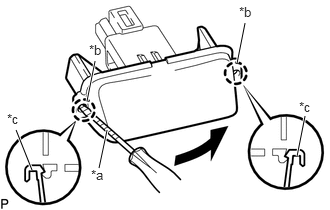

    1. Insert a screwdriver wrapped with protective tape into the license plate light lens hole, tilt it as shown in the illustration and disengage the 2 claws to remove the license plate light lens.
      GTY910360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Insert into the hole
      *c License Plate Light Lens Hole
    2. Remove the license plate light bulb.
