Removal [12/2019 - ]: Procedure

  1. REMOVE REAR WIPER BLADE

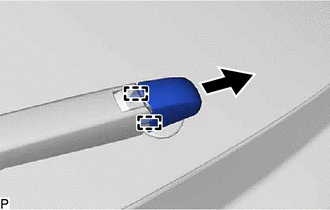

    1. Disengage the 2 guides as shown in the illustration.
      GTY916520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

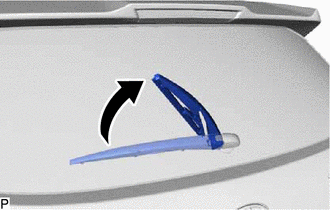

    2. Lift the rear wiper arm and blade assembly as shown in the illustration.
      GTY945044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

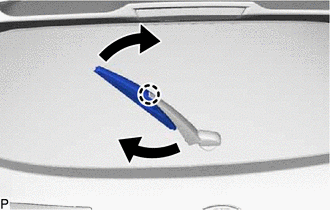

    3. Raise the rear wiper blade to the position where the claw disengages with a click sound as shown in the illustration.
      GTY923682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the claw.

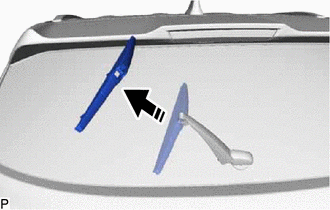

    4. Pull the rear wiper blade as shown in the illustration to remove it from the rear wiper arm.
      GTY865868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Place a piece of cloth between the rear wiper arm and back door glass to avoid damaging the back door glass.

  2. REMOVE REAR WIPER RUBBER

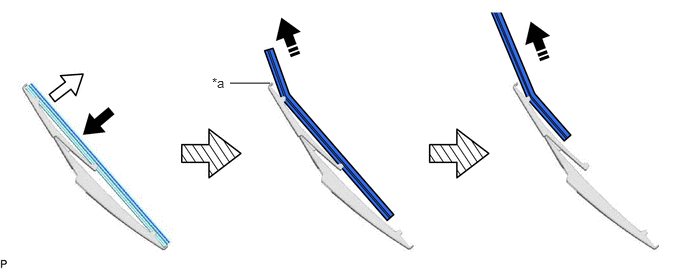

    1. Lift and pull the end of the rear wiper rubber over the stopper as shown in the illustration.
      GTY860311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper - -
      Push Pull Out
      Remove in this Direction - -
      NOTE:

      Do not forcibly pull out the rear wiper rubber as the rear wiper rubber backing plates may be deformed or the claws of the rear wiper blade may be damaged.

      HINT:

      Lightly pushing the middle of the rear wiper rubber will allow it to be removed more easily.

    2. Remove the rear wiper rubber with the 2 rear wiper rubber backing plates from the rear wiper blade.
    3. Remove the 2 rear wiper rubber backing plates from the rear wiper rubber as shown in the illustration.
      GTY876304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
