Removal [12/2019 - ]: Procedure

  1. REMOVE FRONT WIPER BLADE

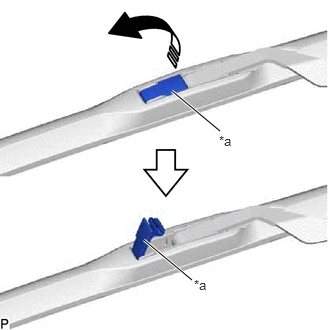

    1. Pull up the holder of the front wiper blade as shown in the illustration.
      GTY886927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Holder
      Remove in this Direction

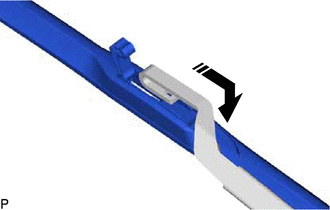

    2. Remove the front wiper blade from the front wiper arm as shown in the illustration.
      NOTE:

      Place a piece of cloth between the front wiper arm and windshield glass to avoid damaging the windshield glass.

      GTY882631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. REMOVE WIPER RUBBER

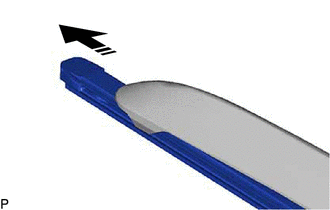

    1. Remove the wiper rubber with the front wiper rubber backing plates from the front wiper blade as shown in the illustration.
      GTY900038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

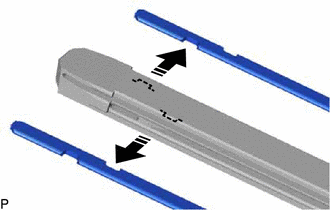

    2. Remove the 2 front wiper rubber backing plates from the wiper rubber as shown in the illustration.
      GTY894476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
