Installation [12/2019 - ]: Procedure

  1. INSTALL WIPER RUBBER
    1. Install the 2 front wiper rubber backing plates to the wiper rubber as shown in the illustration.

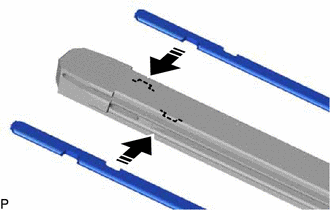

      GTY942496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:
      • Align the protrusions on the wiper rubber and the notches of the backing plates.
      • Align the curves of the backing plates and the windshield glass.
    2. Install the wiper rubber with the front wiper rubber backing plates to the front wiper blade as shown in the illustration.

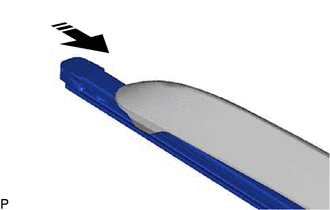

      GTY894205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      NOTE:

      Push the wiper rubber and front wiper backing plates into the front wiper blade strongly to engage them securely.

  2. INSTALL FRONT WIPER BLADE
    1. Install the front wiper blade to the front wiper arm as shown in the illustration.

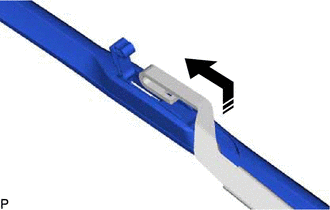

      GTY907506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Rotate the holder of the front wiper blade as shown in the illustration.

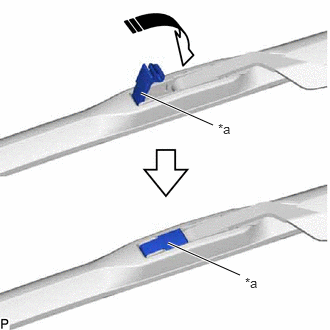

      GTY923576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Holder
      Install in this Direction
    3. Turn the ignition switch to ON.
    4. Operate the windshield wiper switch assembly to return the front wiper arm and blade assemblies to their original position.
    5. Turn the ignition switch off.
