Components [12/2019 - ]

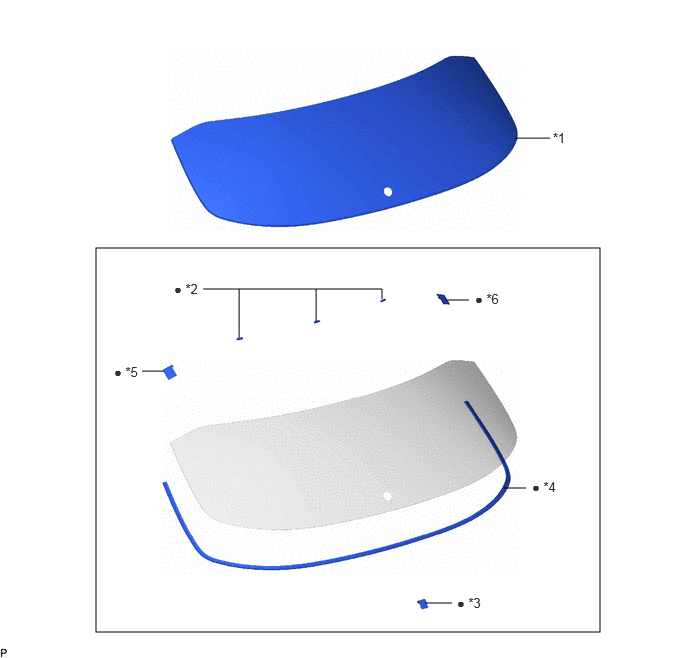

Fig 1: Back Door Glass Replacement Components
GTY1016101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BACK DOOR GLASS *2 BACK DOOR GLASS SPACER
*3 BACK WINDOW GLASS CLIP *4 BACK WINDOW OUTSIDE MOULDING
*5 BACK WINDOW OUTSIDE MOULDING CLIP LH *6 BACK WINDOW OUTSIDE MOULDING CLIP RH
• Non-reusable part - -
