Components [12/2019 - ]

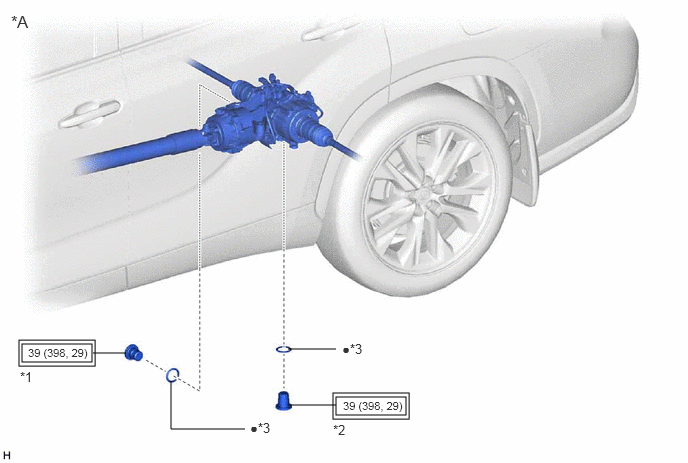

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Dynamic Torque Control AWD | - | - |
| *1 | REAR DIFFERENTIAL FILLER PLUG | *2 | REAR DIFFERENTIAL DRAIN PLUG |
| *3 | GASKET | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

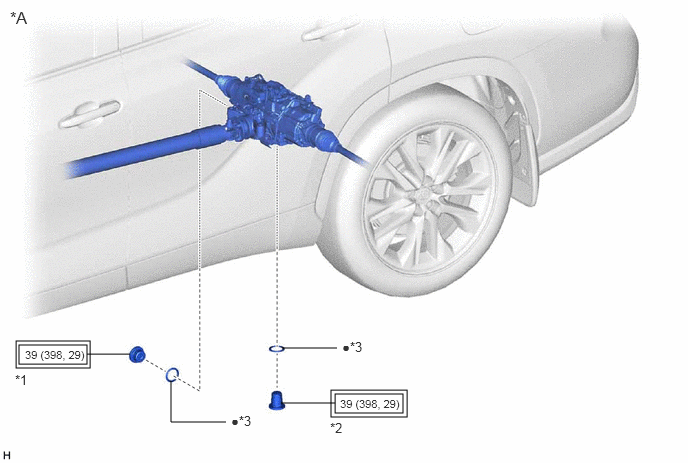

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Dynamic Torque Vectoring AWD | - | - |
| *1 | REAR DIFFERENTIAL FILLER PLUG | *2 | REAR DIFFERENTIAL DRAIN PLUG |
| *3 | GASKET | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
