Components [12/2019 - ]

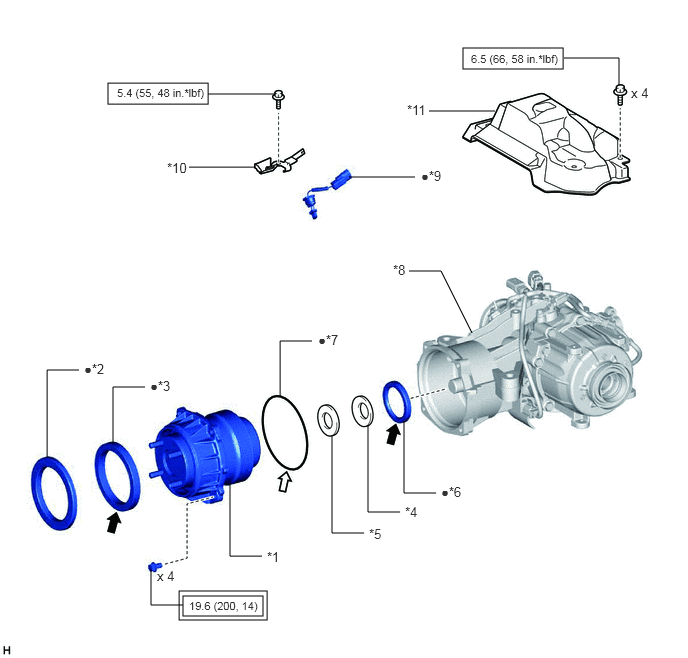

Fig 1: Rear Differential Carrier Oil Seal (For Dynamic Torque Control AWD) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY | *2 | REAR DIFFERENTIAL DUST DEFLECTOR |
| *3 | TRANSMISSION COUPLING DUST SEAL | *4 | CONICAL SPRING WASHER |
| *5 | TRANSMISSION COUPLING SPACER | *6 | REAR DIFFERENTIAL CARRIER OIL SEAL |
| *7 | O-RING | *8 | REAR DIFFERENTIAL CARRIER ASSEMBLY |
| *9 | CLUTCH CONTROL SOLENOID WIRE | *10 | WIRE HARNESS CLAMP BRACKET |
| *11 | DIFFERENTIAL DISCONNECT COVER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
MP grease |
|
Gear oil | - | - |
