Replacement [10/2022 - 11/2023]: Procedure

Refer to REMOVAL [10/2022 - 11/2023]

See step  1

See step  6

See step  10

See step  15

See step  13

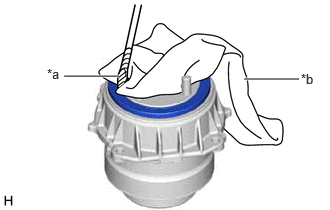

1. Using a piece of cloth and a screwdriver, remove the transmission coupling dust seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape
   *b	Cloth

   NOTE:

   • Do not damage the end surface of the electro magnetic control coupling sub-assembly.
   • Do not damage the contact surface of the transmission coupling dust seal and electro magnetic control coupling sub-assembly.

   HINT:

   Tape the screwdriver tip before use.

   If the end surface or contact surface of the electro magnetic control coupling sub-assembly is damaged while removing the transmission coupling dust seal, replace the electro magnetic control coupling sub-assembly with a new one.

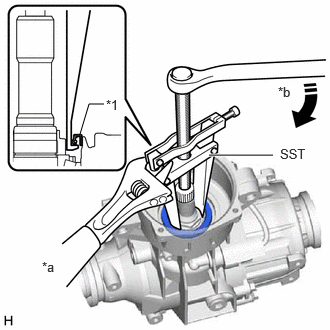

1. Using SST, remove the rear differential carrier oil seal from the rear differential carrier assembly.
   • SST: 09308-55010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Differential Carrier Oil Seal
   *a	Hold
   *b	Turn

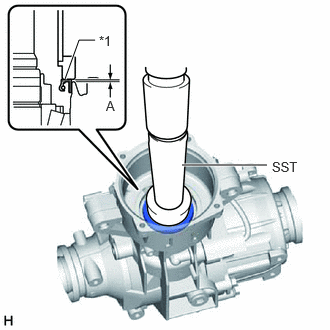

1. Using SST and a press, install a new rear differential carrier oil seal to the rear differential carrier assembly.
   • SST: 09351-40010
     1. 09351-04010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Differential Carrier Oil Seal

   NOTE:

   • Install the rear differential carrier oil seal uniformly.
   • Press fit the rear differential carrier oil seal straight.
   • Do not damage the rear differential carrier oil seal.
   • Do not excessively press in the rear differential carrier oil seal.
   • Make sure to install the rear differential carrier oil seal as specified, otherwise a malfunction such as an oil leak may occur.

   Standard Distance (A)

   -0.3 to 0.3 mm (-0.0118 to 0.0118 in.)

2. Apply a light coat of MP grease to the lip of the rear differential carrier oil seal.

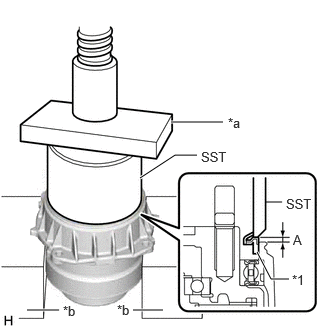

1. Using SST, a steel plate, V-blocks and a press, install a new transmission coupling dust seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Coupling Dust Seal
   *a	Steel Plate
   *b	V-block

   • SST: 09570-48010

   Standard Distance (A)

   -0.2 to 0.4 mm (-0.0079 to 0.0157 in.)

   NOTE:

   • Make sure that the electro magnetic control coupling sub-assembly is supported as shown in the illustration.
   • Make sure to fully install the transmission coupling dust seal to the electro magnetic control coupling sub-assembly.
   • Do not damage the end surface of the electro magnetic control coupling sub-assembly.

   If the end surface of the electro magnetic control coupling sub-assembly is damaged while installing the transmission coupling dust seal, replace the electro magnetic control coupling sub-assembly with a new one.

2. Apply a light coat of MP grease to the lip of the transmission coupling dust seal.

See step  7

See step  8

See step  9

See step  14

See step  19

Refer to INSTALLATION [12/2019 - ]
