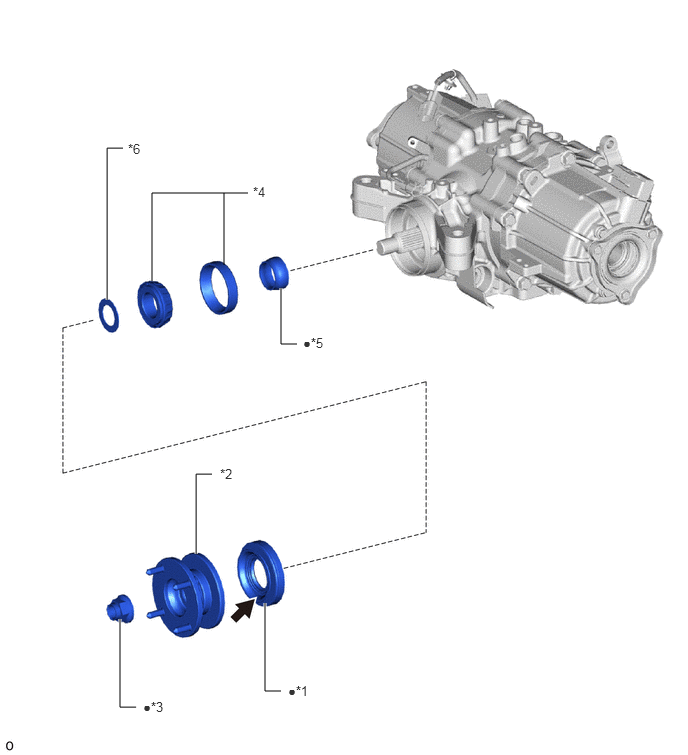

Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DIFFERENTIAL CARRIER OIL SEAL | *2 | REAR DRIVE PINION COMPANION FLANGE SUB-ASSEMBLY |
| *3 | REAR DRIVE PINION NUT | *4 | REAR DRIVE PINION BEARING |
| *5 | REAR DIFFERENTIAL DRIVE PINION BEARING SPACER | *6 | SPACER |
| • | Non-reusable part | |
MP grease |
