Replacement [12/2019 - 10/2022]: Procedure

Refer to REMOVAL [12/2019 - 10/2022]

See step  16

See step  5

See step  6

See step  7

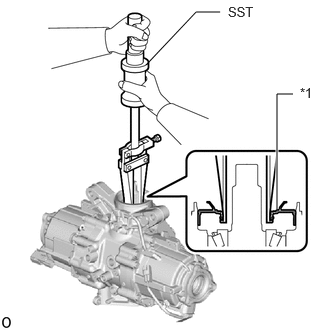

1. Using SST, remove the rear differential carrier oil seal from the rear differential carrier assembly.
   • SST: 09308-00010
   NOTE:

   Do not damage the rear differential carrier oil seal press-fit surface.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Differential Carrier Oil Seal

2. Remove the spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

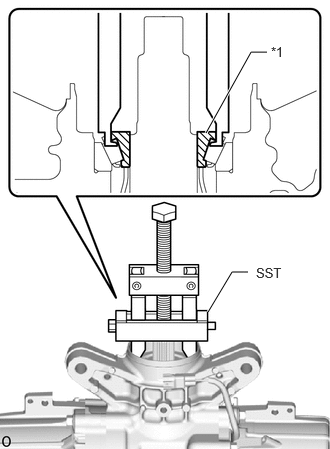

3. Using SST, remove the rear drive pinion bearing (inner race).
   • SST: 09556-40010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Drive Pinion Bearing (Inner Race)

4. Remove the rear differential drive pinion bearing spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

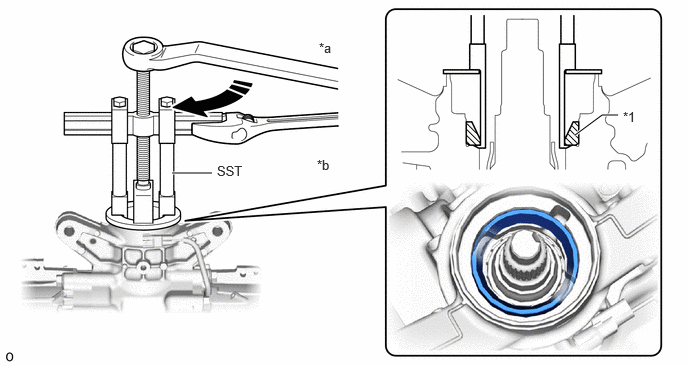

5. Using SST, remove the rear drive pinion bearing (outer race).
   • SST: 09506-42030
   • SST: 09950-40011
     1. 09951-04010
     2. 09952-04010
     3. 09953-04010
     4. 09954-04010
     5. 09957-04010
   • SST: 09955-04160

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Drive Pinion Bearing (Outer Race)	-	-
   *a	Turn	*b	Hold

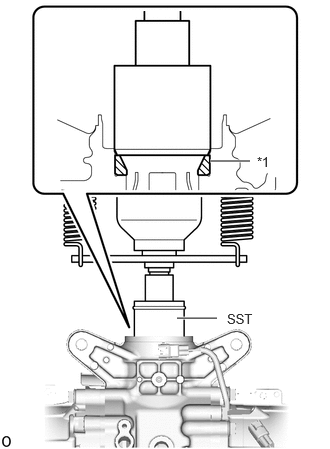

1. Using SST and a press, install the rear drive pinion bearing (outer race).
   • SST: 09506-42010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Drive Pinion Bearing (Outer Race)

2. Install a new rear differential drive pinion bearing spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Temporarily install the rear drive pinion companion flange sub-assembly.

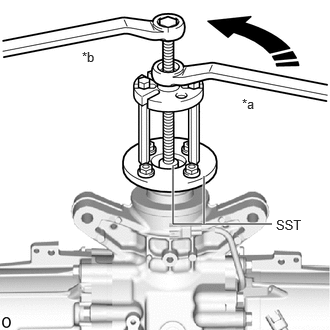

4. Using SST, install the rear drive pinion bearing (inner race).
   • SST: 09950-30012
     1. 09951-03010
     2. 09953-03010
     3. 09954-03010
     4. 09955-03030
     5. 09956-03020

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

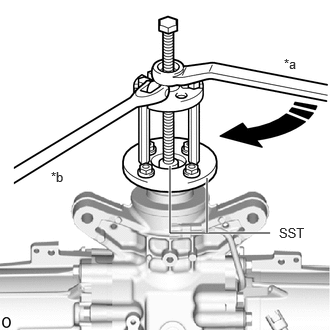

5. Using SST, remove the rear drive pinion companion flange sub-assembly.
   • SST: 09950-30012
     1. 09951-03010
     2. 09953-03010
     3. 09954-03010
     4. 09955-03030
     5. 09956-03020

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Turn
   *b	Hold

6. Install the spacer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Apply a small amount of MP grease to the lip of a new rear differential carrier oil seal.

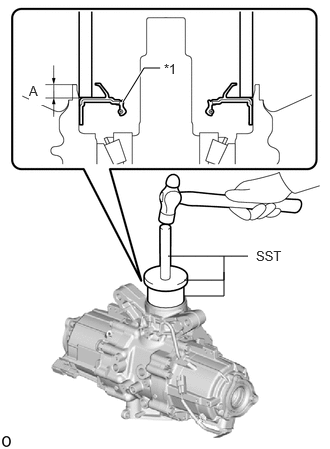

8. Using SST, install the rear differential carrier oil seal to the rear differential carrier assembly.
   • SST: 09554-42010
   • SST: 09950-60021
     1. 09951-01030
   • SST: 09950-70010
     1. 09951-07100

   Drive in depth (A)

   5.7 to 6.3 mm (0.224 to 0.248 in.)

   NOTE:

   Do not damage the rear differential carrier oil seal press-fit surface.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Rear Differential Carrier Oil Seal

   HINT:

   Press using the surface (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  17

See step  18

See step  19

Refer to INSTALLATION [12/2019 - ]
