Components [12/2019 - ]

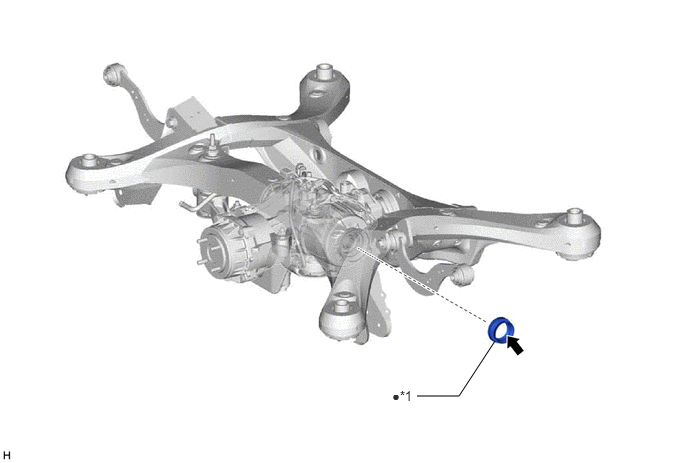

Fig 1: Rear Differential Side Gear Shaft Oil Seal (For Dynamic Torque Control AWD) Replacement Components
GTY874356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 REAR DRIVE SHAFT OIL SEAL - -
Non-reusable part MP grease
