Components [12/2019 - ]

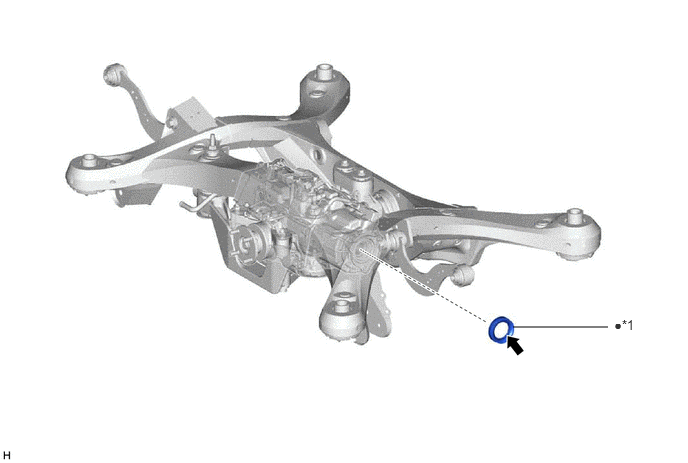

Fig 1: Rear Differential Side Gear Shaft Oil Seal (For Dynamic Torque Vectoring AWD) Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION COUPLING DUST SEAL | - | - |
| • | Non-reusable part | |
MP grease |

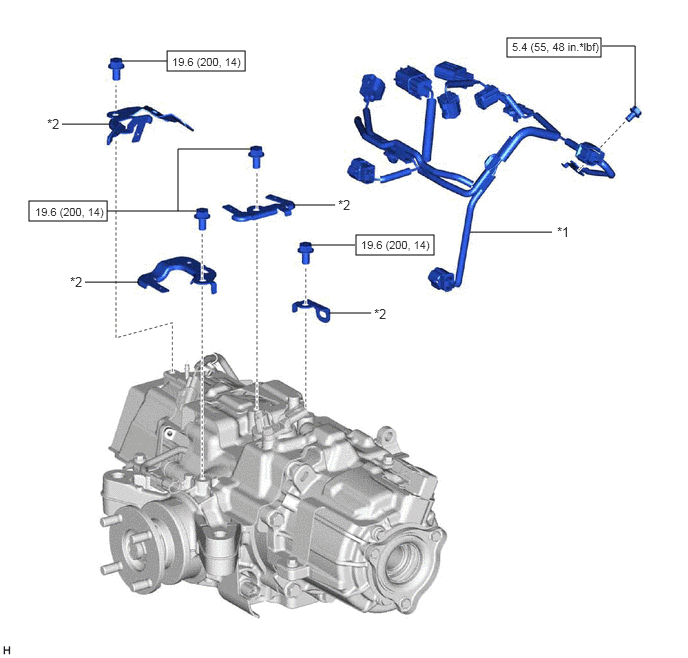

Fig 2: Rear Differential Side Gear Shaft Oil Seal (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH CONTROL SOLENOID WIRE | *2 | WIRE HARNESS CLAMP BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

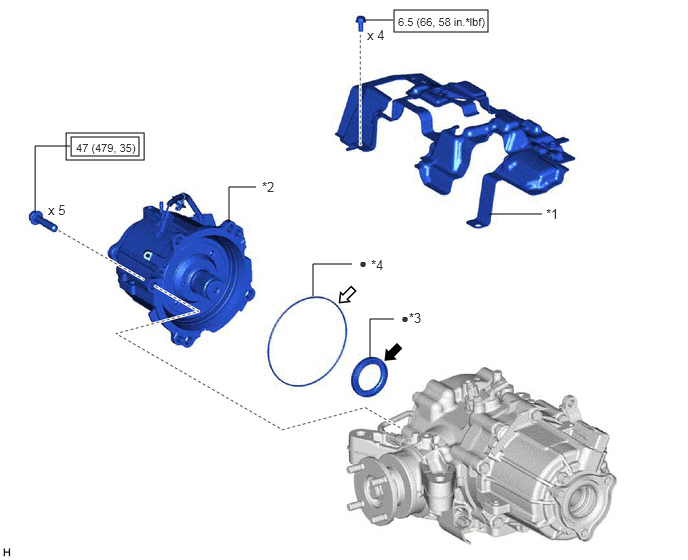

Fig 3: Rear Differential Side Gear Shaft Oil Seal (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DIFFERENTIAL DISCONNECT COVER | *2 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY |
| *3 | REAR DIFFERENTIAL CARRIER OIL SEAL | *4 | O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
MP grease |
|
Gear oil | - | - |

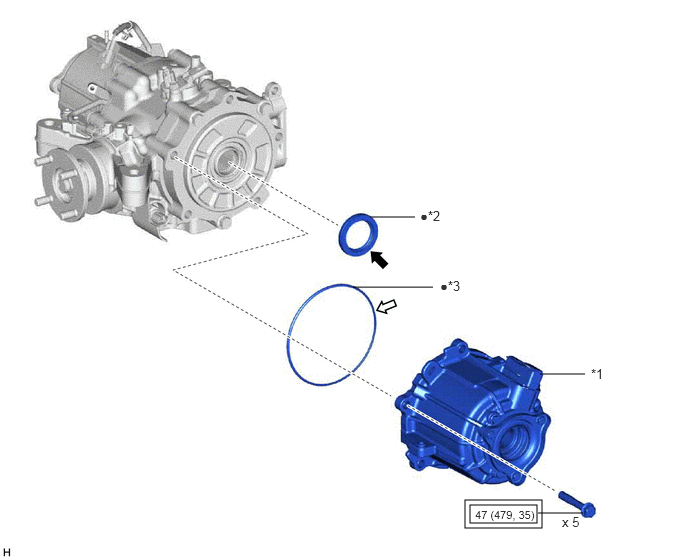

Fig 4: Rear Differential Side Gear Shaft Oil Seal (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY | *2 | REAR DIFFERENTIAL CARRIER OIL SEAL |
| *3 | O-RING | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
MP grease | |
Gear oil |
