Components [12/2019 - ]
Fig 1: Rear Differential Carrier Assembly (For Dynamic Torque Control AWD) Replacement Components With Torque Specifications (1 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR STABILIZER BAR | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

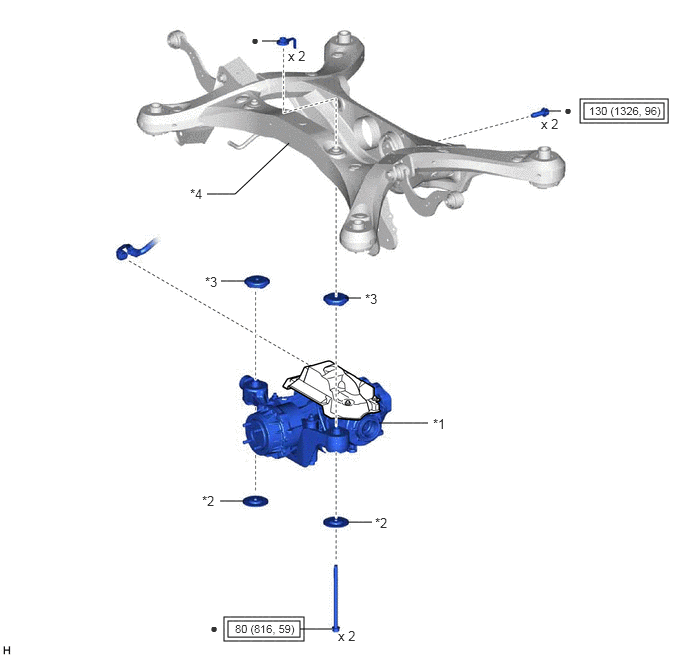

Fig 2: Rear Differential Carrier Assembly (For Dynamic Torque Control AWD) Replacement Components With Torque Specifications (2 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DIFFERENTIAL CARRIER ASSEMBLY | *2 | REAR LOWER DIFFERENTIAL MOUNT STOPPER |
| *3 | REAR UPPER DIFFERENTIAL MOUNT STOPPER | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

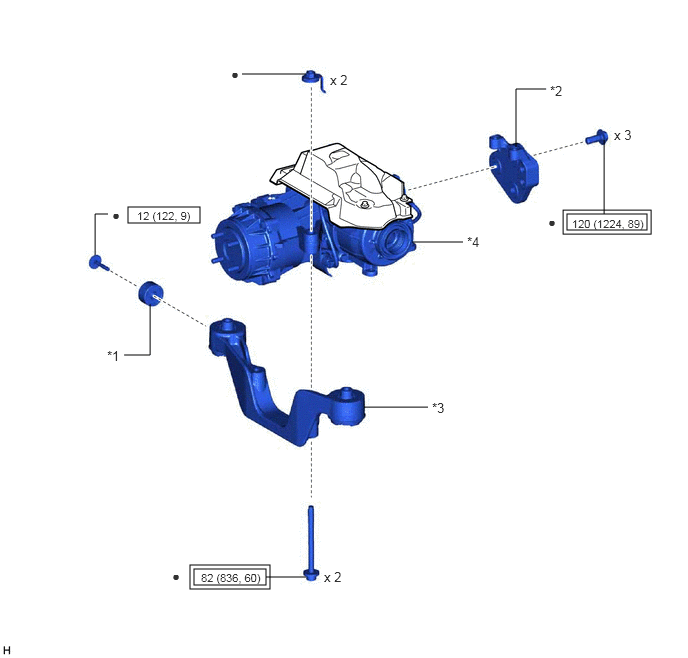

Fig 3: Rear Differential Carrier Assembly (For Dynamic Torque Control AWD) Replacement Components With Torque Specifications (3 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DIFFERENTIAL DYNAMIC DAMPER | *2 | DIFFERENTIAL SUPPORT |
| *3 | REAR NO. 2 DIFFERENTIAL SUPPORT | *4 | REAR DIFFERENTIAL CARRIER ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |

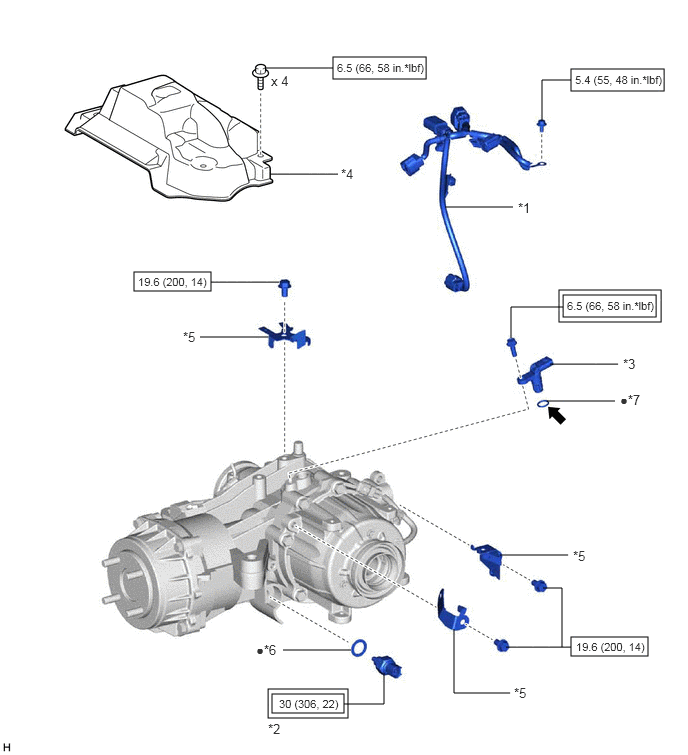

Fig 4: Rear Differential Carrier Assembly (For Dynamic Torque Control AWD) Replacement Components With Torque Specifications (4 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH CONTROL SOLENOID WIRE | *2 | TEMPERATURE SENSOR |
| *3 | TRANSMISSION REVOLUTION SENSOR | *4 | DIFFERENTIAL DISCONNECT COVER |
| *5 | WIRE HARNESS CLAMP BRACKET | *6 | GASKET |
| *7 | O-RING | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
Gear oil |

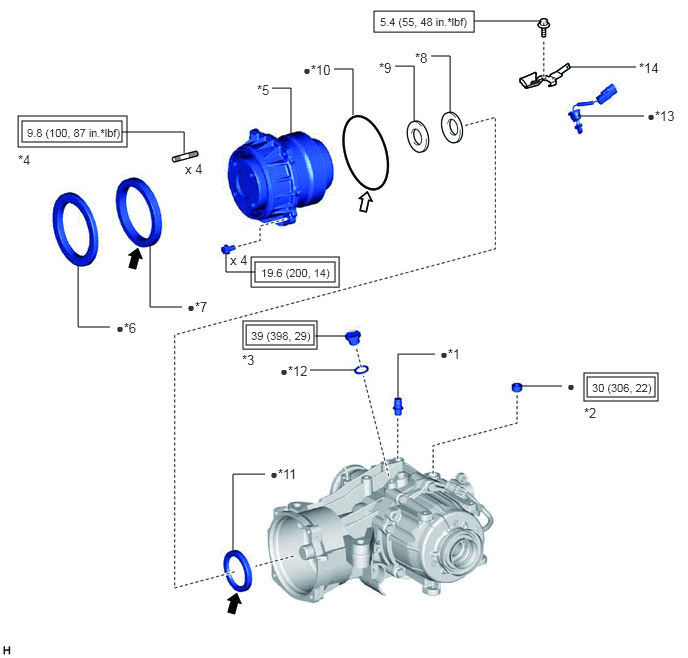

Fig 5: Rear Differential Carrier Assembly (For Dynamic Torque Control AWD) Replacement Components With Torque Specifications (5 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DIFFERENTIAL BREATHER PLUG | *2 | REAR DIFFERENTIAL CARRIER COVER PLUG |
| *3 | REAR DIFFERENTIAL FILLER PLUG | *4 | STUD BOLT |
| *5 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY | *6 | REAR DIFFERENTIAL DUST DEFLECTOR |
| *7 | TRANSMISSION COUPLING DUST SEAL | *8 | CONICAL SPRING WASHER |
| *9 | TRANSMISSION COUPLING SPACER | *10 | O-RING |
| *11 | REAR DIFFERENTIAL CARRIER OIL SEAL | *12 | GASKET |
| *13 | CLUTCH CONTROL SOLENOID WIRE | *14 | WIRE HARNESS CLAMP BRACKET |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
MP grease |
|
Gear oil | - | - |

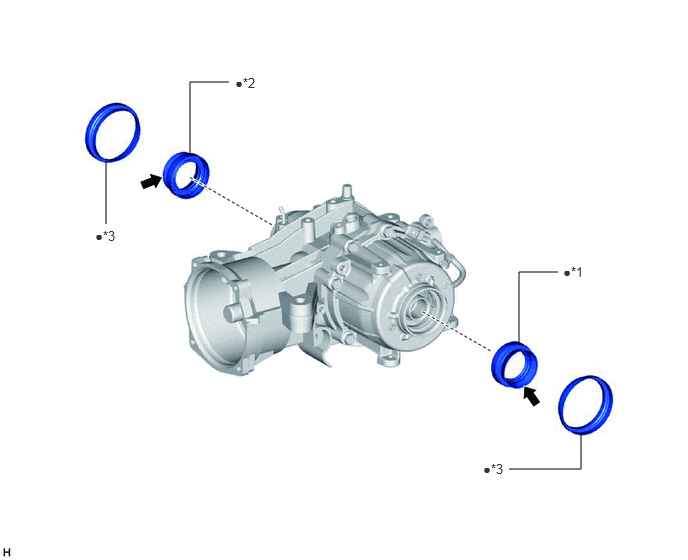

Fig 6: Rear Differential Carrier Assembly (For Dynamic Torque Control AWD) Replacement Components (6 Of 6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DRIVE SHAFT OIL SEAL LH | *2 | REAR DRIVE SHAFT OIL SEAL RH |
| *3 | REAR DIFFERENTIAL DUST DEFLECTOR | - | - |
| • | Non-reusable part | |
MP grease |
