Components [12/2019 - ]
Fig 1: Rear Differential Carrier Assembly (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (1 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR STABILIZER BAR | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

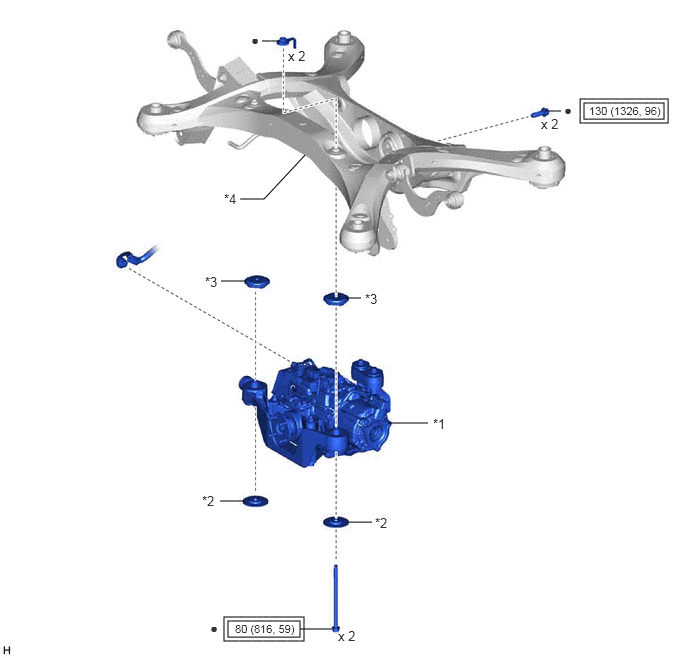

Fig 2: Rear Differential Carrier Assembly (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (2 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TORQUE VECTORING DIFFERENTIAL CARRIER ASSEMBLY | *2 | REAR LOWER DIFFERENTIAL MOUNT STOPPER |
| *3 | REAR UPPER DIFFERENTIAL MOUNT STOPPER | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

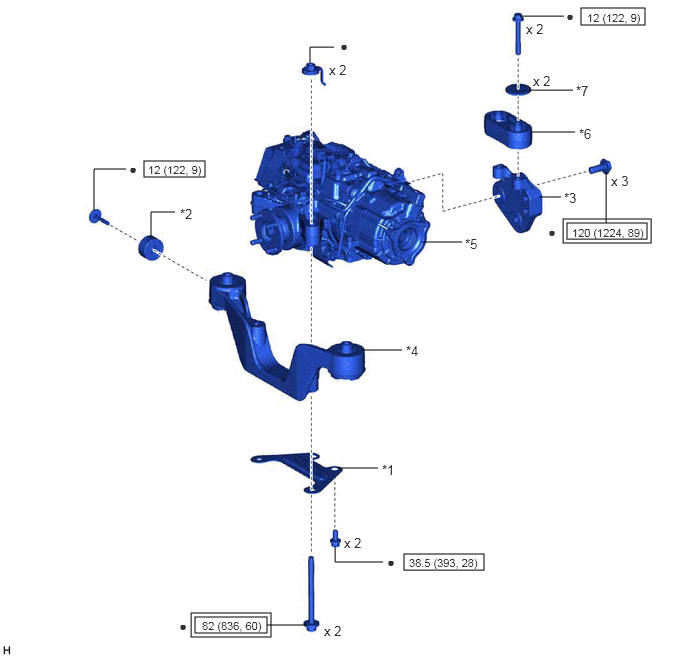

Fig 3: Rear Differential Carrier Assembly (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (3 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DIFFERENTIAL SUPPORT | *2 | REAR DIFFERENTIAL DYNAMIC DAMPER |
| *3 | DIFFERENTIAL SUPPORT | *4 | REAR NO. 2 DIFFERENTIAL SUPPORT |
| *5 | TORQUE VECTORING DIFFERENTIAL CARRIER ASSEMBLY | *6 | REAR NO. 2 DIFFERENTIAL DYNAMIC DAMPER |
| *7 | REAR UPPER DIFFERENTIAL MOUNT STOPPER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | - | - |

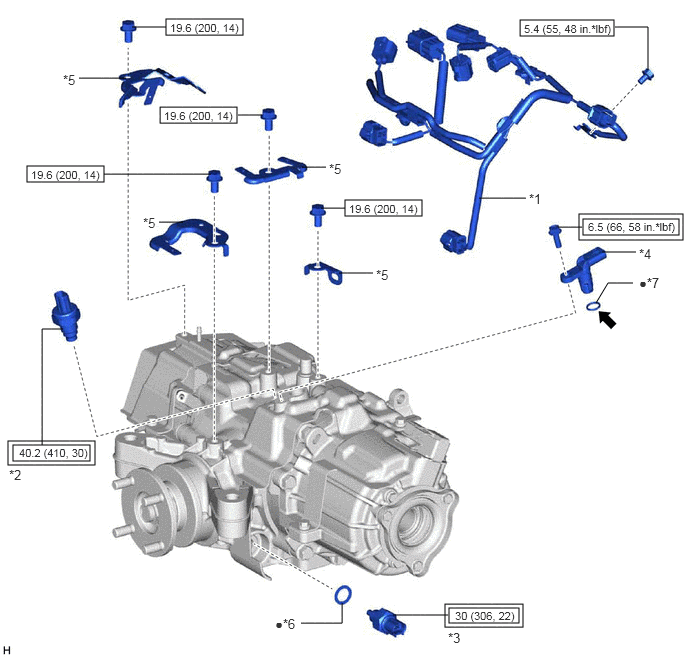

Fig 4: Rear Differential Carrier Assembly (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (4 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH CONTROL SOLENOID WIRE | *2 | NO. 2 4 WHEEL DRIVE POSITION SWITCH |
| *3 | TEMPERATURE SENSOR | *4 | TRANSMISSION REVOLUTION SENSOR |
| *5 | WIRE HARNESS CLAMP BRACKET | *6 | GASKET |
| *7 | O-RING | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
Gear oil |

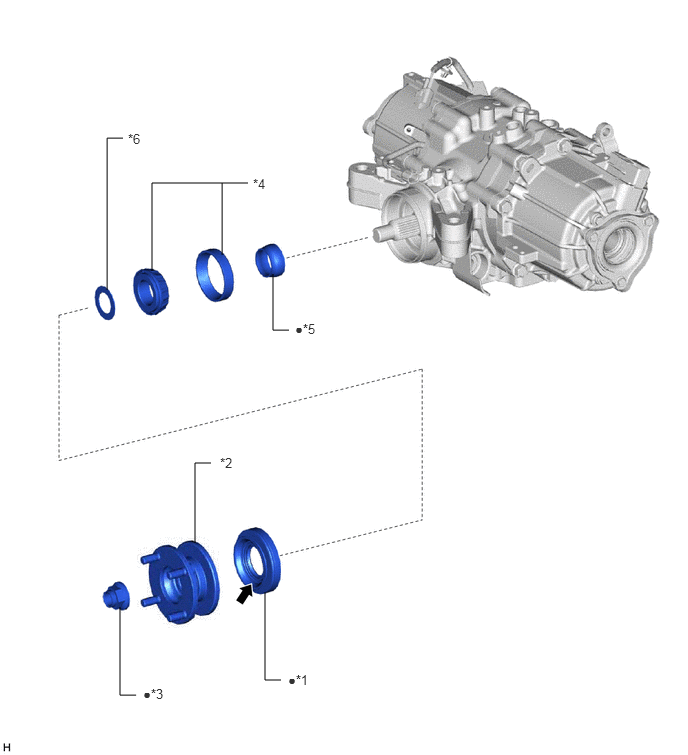

Fig 5: Rear Differential Carrier Assembly (For Dynamic Torque Vectoring AWD) Replacement Components (5 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DIFFERENTIAL CARRIER OIL SEAL | *2 | REAR DRIVE PINION COMPANION FLANGE SUB-ASSEMBLY |
| *3 | REAR DRIVE PINION NUT | *4 | REAR DRIVE PINION BEARING |
| *5 | REAR DIFFERENTIAL DRIVE PINION BEARING SPACER | *6 | SPACER |
| • | Non-reusable part | |
MP grease |

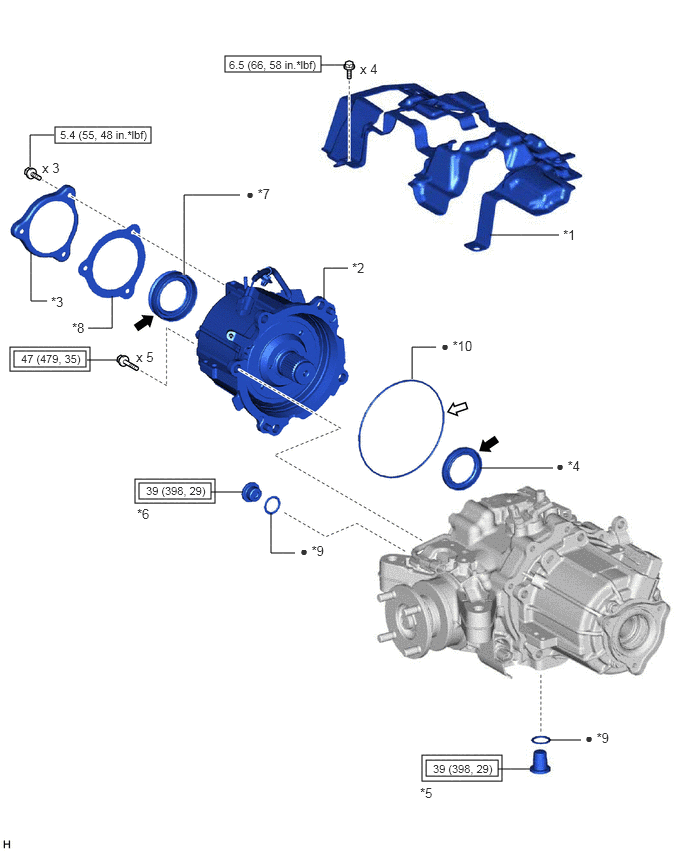

Fig 6: Rear Differential Carrier Assembly (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (6 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DIFFERENTIAL DISCONNECT COVER | *2 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY |
| *3 | NO. 1 REAR DIFFERENTIAL DUST DEFLECTOR | *4 | REAR DIFFERENTIAL CARRIER OIL SEAL |
| *5 | REAR DIFFERENTIAL DRAIN PLUG | *6 | REAR DIFFERENTIAL FILLER PLUG |
| *7 | TRANSMISSION COUPLING DUST SEAL | *8 | NO. 2 REAR DIFFERENTIAL DUST DEFLECTOR |
| *9 | GASKET | *10 | O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
MP grease |
|
Gear oil | - | - |

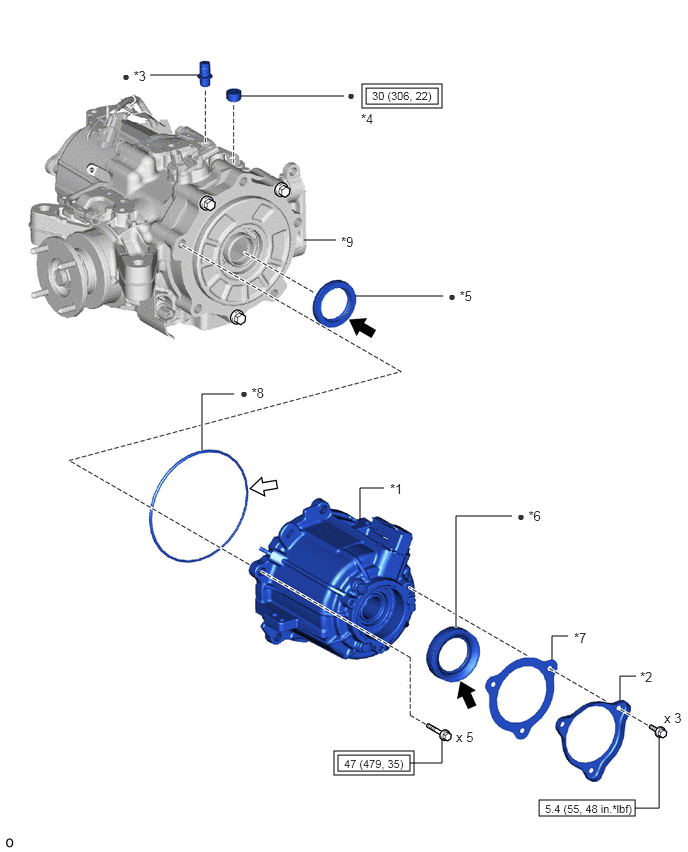

Fig 7: Rear Differential Carrier Assembly (For Dynamic Torque Vectoring AWD) Replacement Components With Torque Specifications (7 Of 7)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY | *2 | NO. 1 REAR DIFFERENTIAL DUST DEFLECTOR |
| *3 | REAR DIFFERENTIAL BREATHER PLUG | *4 | REAR DIFFERENTIAL CARRIER COVER PLUG |
| *5 | REAR DIFFERENTIAL CARRIER OIL SEAL | *6 | TRANSMISSION COUPLING DUST SEAL |
| *7 | NO. 2 REAR DIFFERENTIAL DUST DEFLECTOR | *8 | O-RING |
| *9 | REAR DIFFERENTIAL CARRIER ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
MP grease |
|
Gear oil | - | - |
