Components [12/2019 - ]

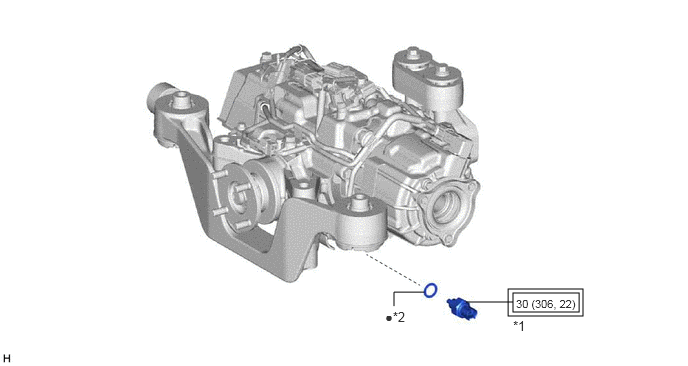

Fig 1: Differential Oil Temperature Sensor Replacement Components With Torque Specifications
GTY844435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TEMPERATURE SENSOR *2 GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) • Non-reusable part
