Components [10/2022 - ]

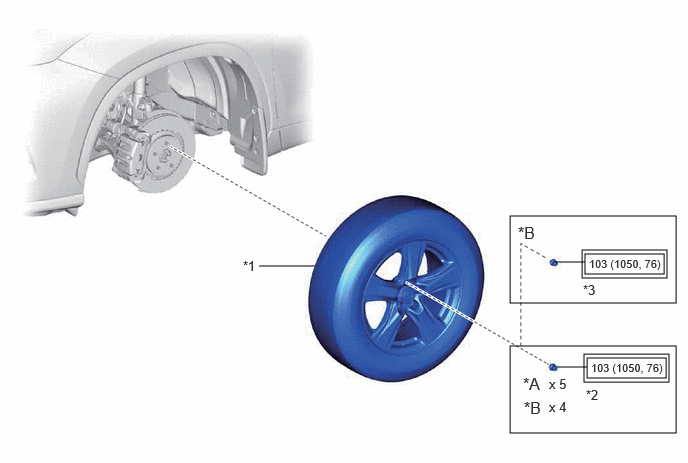

Fig 1: Tire And Wheel Replacement Components With Torque Specifications [10/2022 - ]
GTY1179103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Lock Nut *B w/ Lock Nut
*1 WHEEL ASSEMBLY *2 AXLE HUB NUT
*3 LOCK NUT - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
