Components [09/2020 - ]

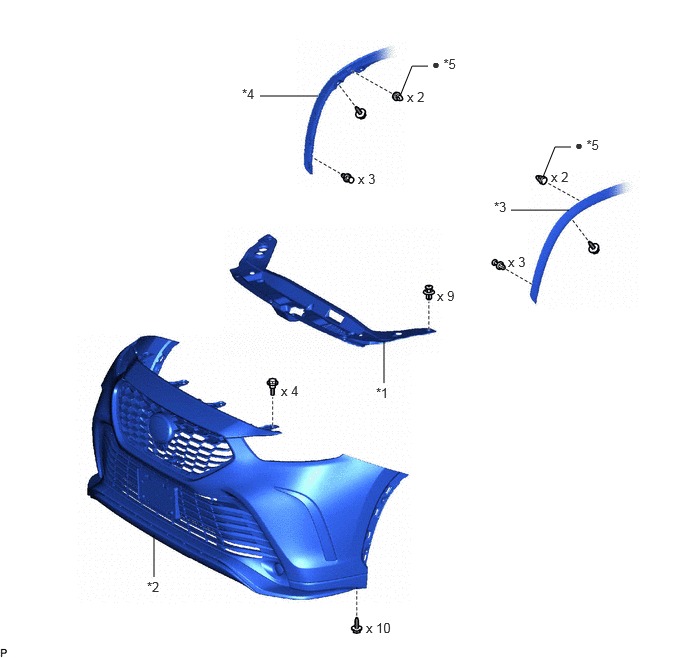

Fig 1: Front Bumper (For Sport Package) Replacement Components (1 Of 7)
GTY1016331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOL AIR INTAKE DUCT SEAL *2 FRONT BUMPER ASSEMBLY
*3 FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY LH *4 FRONT FENDER WHEEL OPENING MOULDING SUB-ASSEMBLY RH
*5 CLIP - -
• Non-reusable part - -

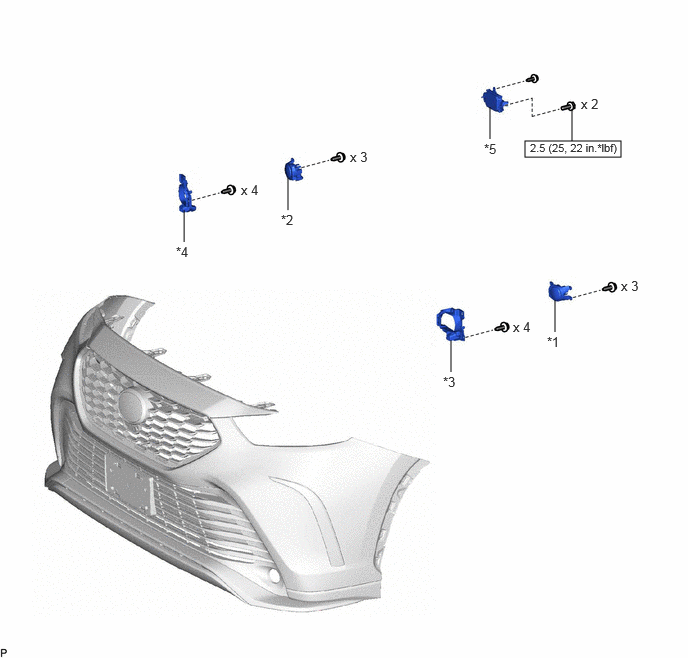

Fig 2: Front Bumper (For Sport Package) Replacement Components With Torque Specifications (2 Of 7)
GTY1015247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FOG LIGHT ASSEMBLY LH *2 FOG LIGHT ASSEMBLY RH
*3 FOG LIGHT BRACKET LH *4 FOG LIGHT BRACKET RH
*5 MILLIMETER WAVE RADAR SENSOR ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -

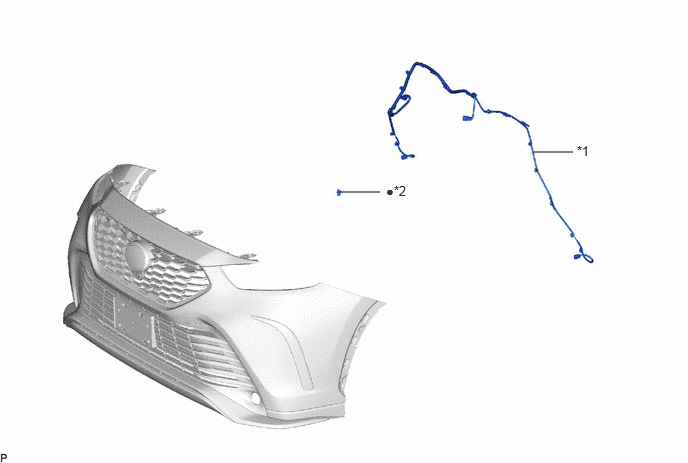

Fig 3: Front Bumper (For Sport Package) Replacement Components (3 Of 7)
GTY1016363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 4 ENGINE ROOM WIRE *2 ULTRASONIC SENSOR CLIP
• Non-reusable part - -

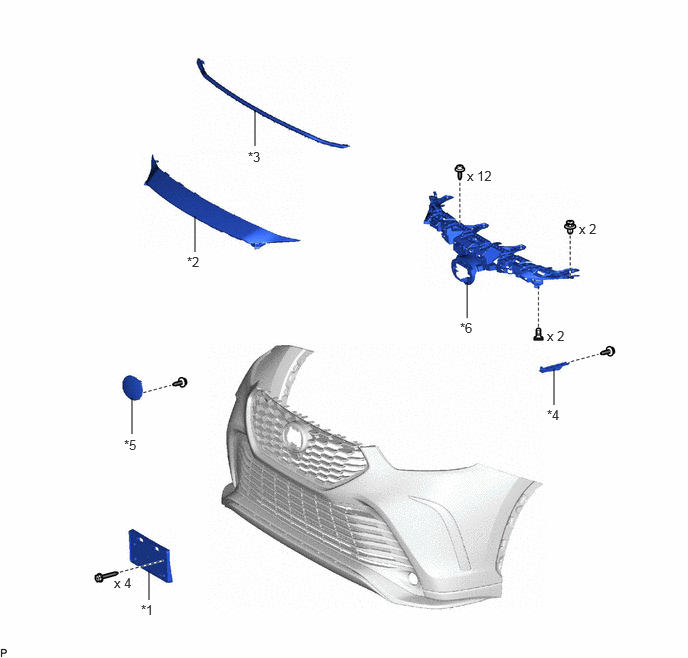

Fig 4: Front Bumper (For Sport Package) Replacement Components (4 Of 7)
GTY1015868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER EXTENSION MOUNTING BRACKET *2 FRONT BUMPER MOULDING
*3 HOOD TO RADIATOR GRILLE SEAL *4 NO. 1 FRONT BUMPER LOWER RETAINER
*5 RADIATOR GRILLE (OR FRONT PANEL) EMBLEM *6 RADIATOR GRILLE BRACKET

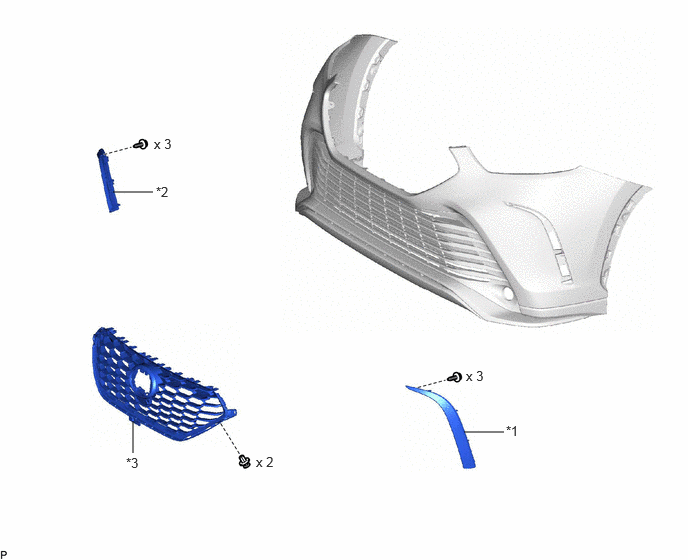

Fig 5: Front Bumper (For Sport Package) Replacement Components (5 Of 7)
GTY1016194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 FRONT BUMPER EXTENSION INSERT LH *2 NO. 2 FRONT BUMPER EXTENSION INSERT RH
*3 RADIATOR GRILLE SUB-ASSEMBLY - -

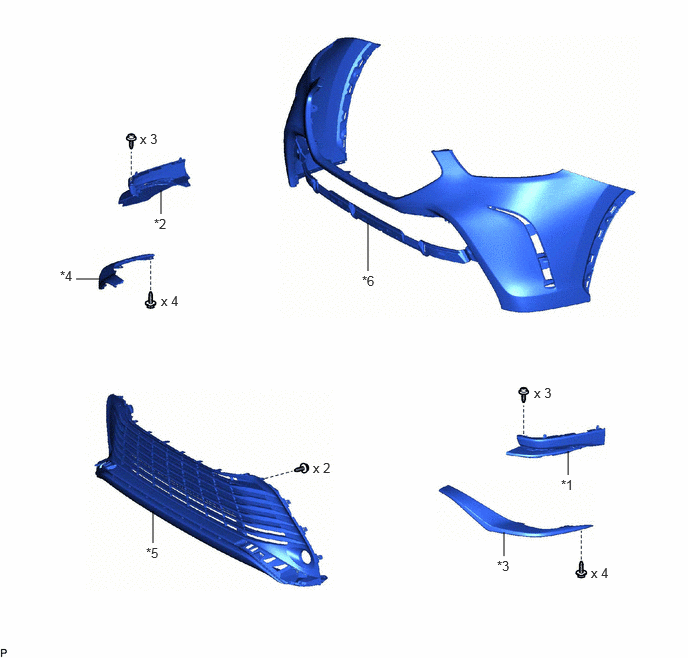

Fig 6: Front Bumper (For Sport Package) Replacement Components (6 Of 7)
GTY1015660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER FILLER LH *2 FRONT BUMPER FILLER RH
*3 FRONT BUMPER SIDE MOULDING LH *4 FRONT BUMPER SIDE MOULDING RH
*5 LOWER RADIATOR GRILLE SUB-ASSEMBLY *6 FRONT BUMPER COVER

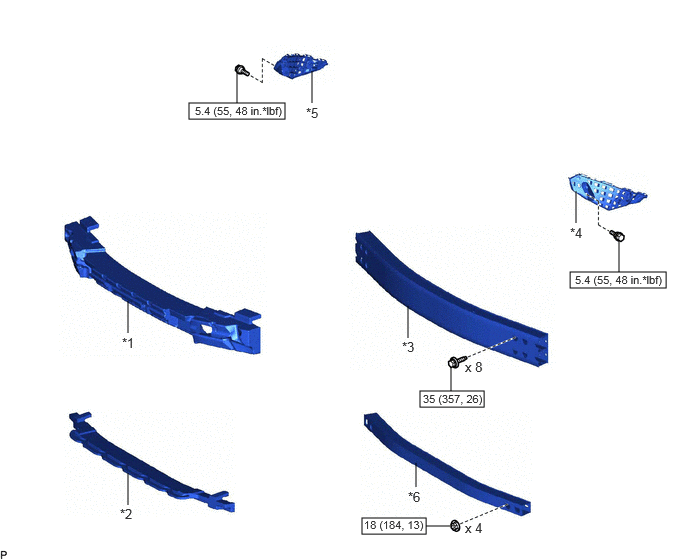

Fig 7: Front Bumper (For Sport Package) Replacement Components With Torque Specifications (7 Of 7)
GTY1015070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER LOWER ABSORBER
*3 FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY *4 FRONT BUMPER SIDE STAY LH
*5 FRONT BUMPER SIDE STAY RH *6 NO. 2 FRONT BUMPER REINFORCEMENT
N.m (kgf/cm, ft.lbf): Specified torque - -
