Removal [11/2024 - ]: Procedure

  1. REMOVE SYMBOL EMBLEM
    1. Apply protective tape around the symbol emblem.

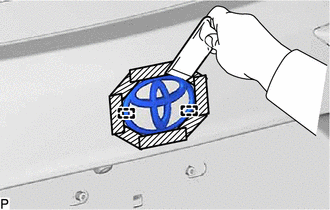

      GTY845418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Using a moulding remover, separate the double-sided tape and disengage the 2 pins to remove the symbol emblem.
      NOTE:

      Be careful not to damage the back door panel.

  2. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE (w/o 25th Edition)
    1. Apply protective tape around the No. 2 luggage compartment door name plate as shown in the illustration.

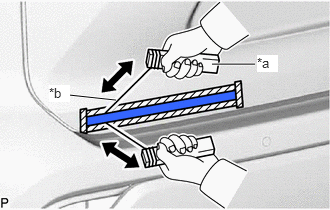

      GTY851580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Insert a piano wire between the back door panel and No. 2 luggage compartment door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 2 luggage compartment door name plate to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

  3. REMOVE VEHICLE NAME SERIES EMBLEM (w/ 25th Edition)
    1. Apply protective tape around the vehicle name series emblem as shown in the illustration.
      GTY851580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Insert a piano wire between the back door panel and vehicle name series emblem.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the vehicle name series emblem to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

  4. REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE (for HV Model)
    1. Apply protective tape around the No. 1 luggage compartment door name plate as shown in the illustration.

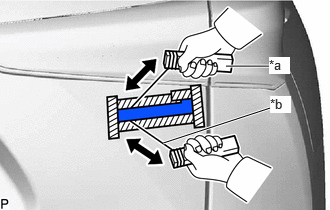

      GTY1250077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Insert a piano wire between the back door panel and No. 1 luggage compartment door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 1 luggage compartment door name plate to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

  5. REMOVE NO. 5 BACK DOOR NAME PLATE
    1. Apply protective tape around the No. 5 back door name plate as shown in the illustration.

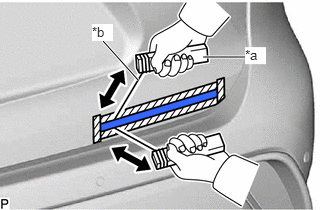

      GTY931613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Insert a piano wire between the back door panel and No. 5 back door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 5 back door name plate to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

  6. REMOVE NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE (for AWD)
    1. Apply protective tape around the No. 4 luggage compartment door name plate as shown in the illustration.

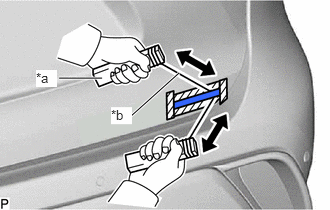

      GTY841463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Insert a piano wire between the back door panel and No. 4 luggage compartment door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 4 luggage compartment door name plate to the back door panel.
      NOTE:

      Be careful not to damage the back door panel.

  7. REMOVE NO. 2 FRONT DOOR NAME PLATE (for HV Model)
    1. Apply protective tape around the No. 2 front door name plate as shown in the illustration.

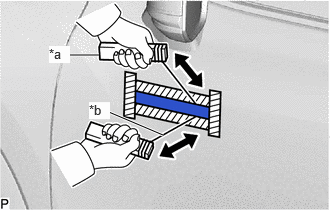

      GTY1250235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Insert a piano wire between the front door panel and No. 2 front door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the No. 2 front door name plate to the front door panel.
      NOTE:

      Be careful not to damage the front door panel.

  8. REMOVE FRONT DOOR NAME PLATE (for HV Model)
    1. Apply protective tape around the front door name plate as shown in the illustration.

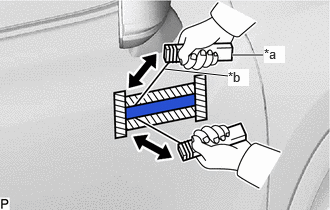

      GTY1249985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Piano Wire
      Protective Tape
    2. Insert a piano wire between the front door panel and front door name plate.
    3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
    4. Pull the piano wire and cut the double-sided tape that holds the front door name plate to the front door panel.
      NOTE:

      Be careful not to damage the front door panel.
