Installation [11/2024 - ]: Procedure

  1. INSTALL NO. 2 FRONT DOOR NAME PLATE (for HV Model)
    1. Clean the front door panel surface.
      1. Using a heat light, heat the front door panel surface.
      2. Remove any remaining double-sided tape from the front door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new No. 2 front door name plate.
      1. Using a heat light, heat the front door panel surface.
      2. Remove the release paper from the No. 2 front door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 2 front door name plate as shown in the illustration.

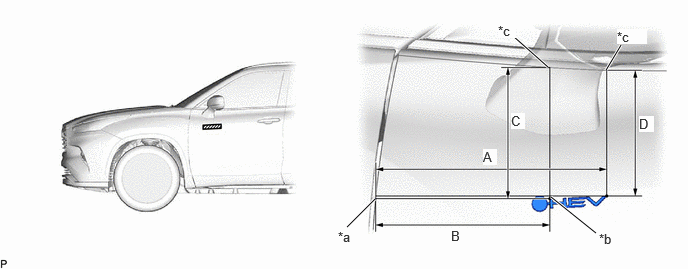

        GTY1250009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Profile of Front Door Panel *b R End
        *c R End of Front Door Panel - -

        Standard Measurement

        Area Measurement Area Measurement
        A 300.0 mm (11.8 in.) B 226.0 mm (8.90 ft.)
        C 204.0 mm (80.3 in.) D 169.0 mm (6.65 in.)

        HINT:

        Press the No. 2 front door name plate firmly to install it.

  2. INSTALL FRONT DOOR NAME PLATE (for HV Model)
    1. Clean the front door panel surface.
      1. Using a heat light, heat the front door panel surface.
      2. Remove any remaining double-sided tape from the front door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new front door name plate.
      1. Using a heat light, heat the front door panel surface.
      2. Remove the release paper from the front door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the front door name plate as shown in the illustration.

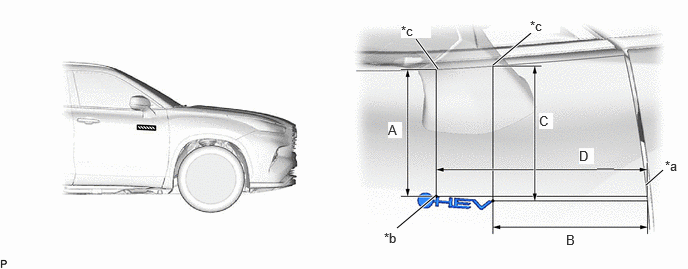

        GTY1250250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Profile of Front Door Panel *b R End
        *c R End of Front Door Panel - -

        Standard Measurement

        Area Measurement Area Measurement
        A 198.0 mm (7.80 in.) B 203.0 mm (7.99 ft.)
        C 208.8 mm (8.22 in.) D 276.23 mm (10.9 in.)

        HINT:

        Press the front door name plate firmly to install it.

  3. INSTALL NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE (for HV Model)
    1. Clean the back door panel surface.
      1. Using a heat light, heat the back door panel surface.
      2. Remove any remaining double-sided tape from the back door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new No. 1 luggage compartment door name plate.
      1. Using a heat light, heat the back door panel surface.
      2. Remove the release paper from the No. 1 luggage compartment door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 1 luggage compartment door name plate as shown in the illustration.

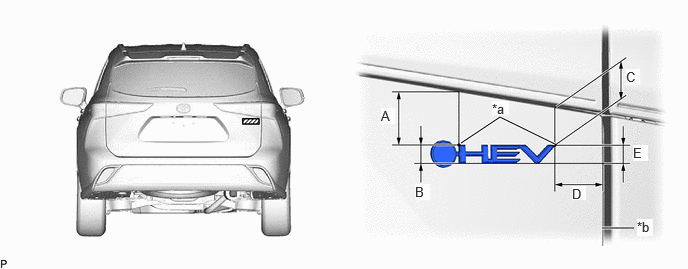

        GTY1249907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a R End *b R End of Back Door Panel

        Standard Measurement

        Area Measurement Area Measurement
        A 42.26 mm (1.66 in.) B 15.1 mm (0.594 in.)
        C 30.95 mm (1.22 in.) D 53.22 mm (2.1 in.)
        E 13.7 mm (0.539 in.) - -

        HINT:

        Press the No. 1 luggage compartment door name plate firmly to install it.

  4. INSTALL NO. 5 BACK DOOR NAME PLATE
    1. Clean the back door panel surface.
      1. Using a heat light, heat the back door panel surface.
      2. Remove any remaining double-sided tape from the back door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new No. 5 back door name plate.
      1. Using a heat light, heat the back door panel surface.
      2. Remove the release paper from the No. 5 back door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. for LE Plate:
        1. Install the No. 5 back door name plate as shown in the illustration.

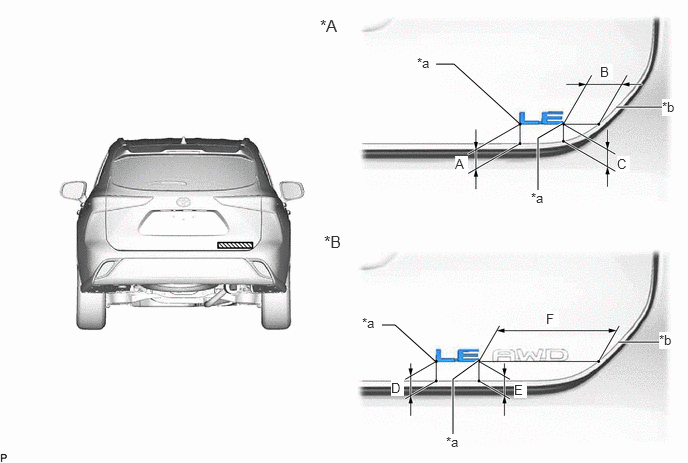

          GTY914353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *A for 2WD *B for AWD
          *a R End *b R End of Back Door Panel

          Standard Measurement

          Area Measurement Area Measurement
          A 21.5 mm (0.846 in.) B 41.6 mm (1.64 in.)
          C 19.3 mm (0.760 in.) D 21.4 mm (0.843 in.)
          E 21.5 mm (0.846 in.) F 138.0 mm (5.43 in.)

          HINT:

          Press the No. 5 back door name plate firmly to install it.

      4. for XLE Plate:
        1. Install the No. 5 back door name plate as shown in the illustration.

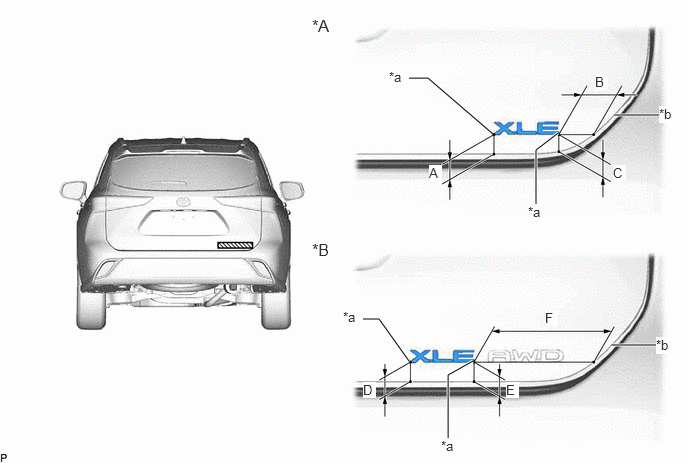

          GTY909410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *A for 2WD *B for AWD
          *a R End *b R End of Back Door Panel

          Standard Measurement

          Area Measurement Area Measurement
          A 21.5 mm (0.846 in.) B 41.4 mm (1.63 in.)
          C 19.3 mm (0.760 in.) D 21.3 mm (0.839 in.)
          E 21.5 mm (0.846 in.) F 138.0 mm (5.43 in.)

          HINT:

          Press the No. 5 back door name plate firmly to install it.

      5. for Limited Plate:
        1. Install the No. 5 back door name plate as shown in the illustration.

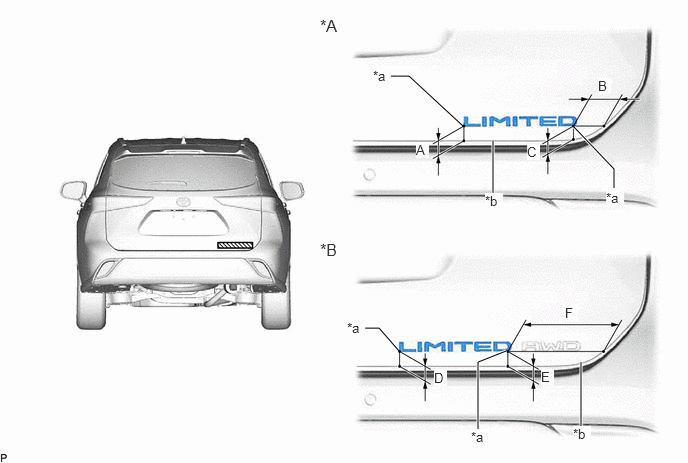

          GTY915234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *A for 2WD *B for AWD
          *a R End *b R End of Back Door Panel

          Standard Measurement

          Area Measurement Area Measurement
          A 21.3 mm (0.839 in.) B 49.4 mm (1.94 in.)
          C 20.3 mm (0.799 in.) D 21.1 mm (0.831 in.)
          E 21.5 mm (0.846 in.) F 145.8 mm (5.74 in.)

          HINT:

          Press the No. 5 back door name plate firmly to install it.

      6. for Platinum Plate:
        1. Install the No. 5 back door name plate as shown in the illustration.

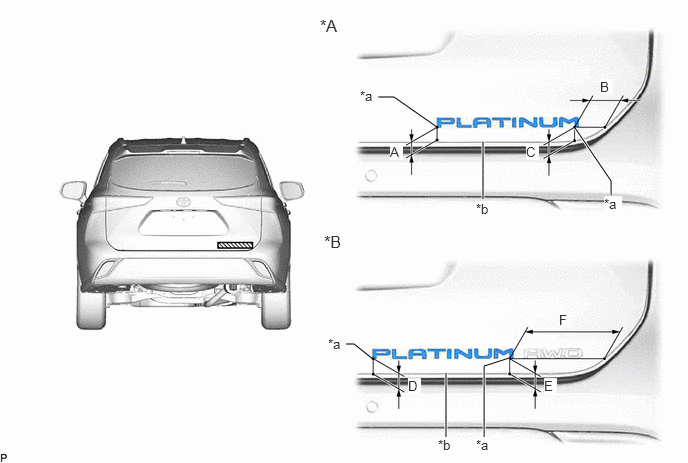

          GTY921511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *A for 2WD *B for AWD
          *a R End *b R End of Back Door Panel

          Standard Measurement

          Area Measurement Area Measurement
          A 21.2 mm (0.835 in.) B 41.6 mm (1.64 in.)
          C 19.1 mm (0.752 in.) D 21.0 mm (0.827 in.)
          E 21.5 mm (0.846 in.) F 138.0 mm (5.43 in.)

          HINT:

          Press the No. 5 back door name plate firmly to install it.

      7. for XSE Plate:
        1. Install the No. 5 back door name plate as shown in the illustration.

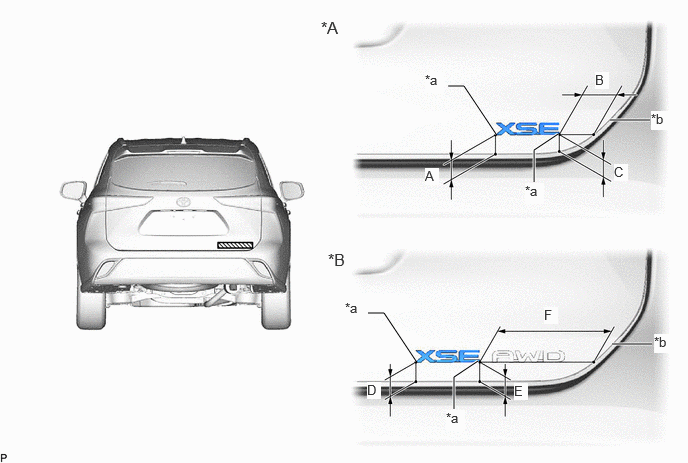

          GTY1015037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          *A for 2WD *B for AWD
          *a R End *b R End of Back Door Panel

          Standard Measurement

          Area Measurement Area Measurement
          A 21.5 mm (0.846 in.) B 41.4 mm (1.63 in.)
          C 19.3 mm (0.760 in.) D 21.3 mm (0.839 in.)
          E 21.5 mm (0.846 in.) F 138.0 mm (5.43 in.)

          HINT:

          Press the No. 5 back door name plate firmly to install it.

  5. INSTALL NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE (for AWD)
    1. Clean the back door panel surface.
      1. Using a heat light, heat the back door panel surface.
      2. Remove any remaining double-sided tape from the back door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new No. 4 luggage compartment door name plate.
      1. Using a heat light, heat the back door panel surface.
      2. Remove the release paper from the No. 4 luggage compartment door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 4 luggage compartment door name plate as shown in the illustration.

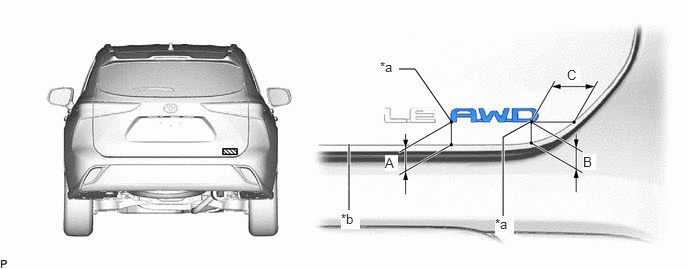

        GTY849560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a R End *b R End of Back Door Panel

        Standard Measurement

        Area Measurement Area Measurement
        A 21.5 mm (0.846 in.) B 19.5 mm (0.768 in.)
        C 42.9 mm (1.69 in.) - -

        HINT:

        Press the No. 4 luggage compartment door name plate firmly to install it.

  6. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE (w/o 25th Edition)
    1. Clean the back door panel surface.
      1. Using a heat light, heat the back door panel surface.
      2. Remove any remaining double-sided tape from the back door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new No. 2 luggage compartment door name plate.
      1. Using a heat light, heat the back door panel surface.
      2. Remove the release paper from the No. 2 luggage compartment door name plate.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the No. 2 luggage compartment door name plate as shown in the illustration.

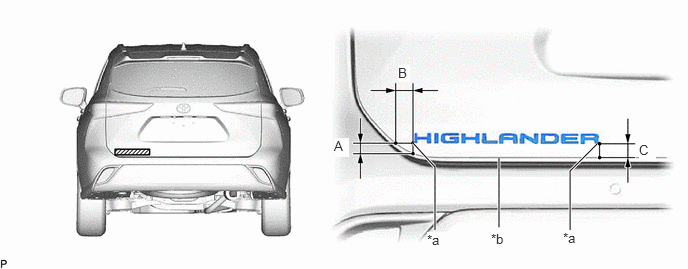

        GTY902437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a R End *b R End of Back Door Panel

        Standard Measurement

        Area Measurement Area Measurement
        A 16.1 mm (0.634 in.) B 28.4 mm (1.12 in.)
        C 21.1 mm (0.831 in.) - -

        HINT:

        Press the No. 2 luggage compartment door name plate firmly to install it.

  7. INSTALL VEHICLE NAME SERIES EMBLEM (w/ 25th Edition)
    1. Clean the back door panel surface.
      1. Using a heat light, heat the back door panel surface.
      2. Remove any remaining double-sided tape from the back door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new vehicle name series emblem.
      1. Using a heat light, heat the back door panel surface.
      2. Remove the release paper from the vehicle name series emblem.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Install the vehicle name series emblem as shown in the illustration.

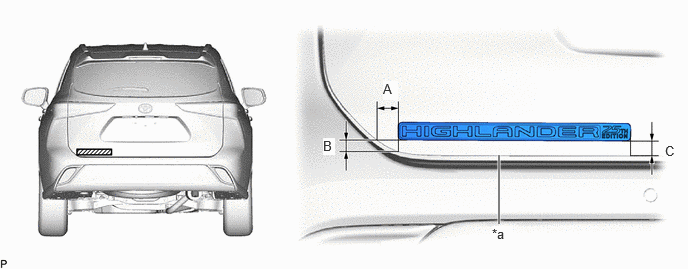

        GTY1249773Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a R End of Back Door Panel - -

        Standard Measurement

        Area Measurement Area Measurement
        A 30.5 mm (1.20 in.) B 17.7 mm (0.70 in.)
        C 18.7 mm (0.74 in.) - -

        HINT:

        Press the vehicle name series emblem firmly to install it.

  8. INSTALL SYMBOL EMBLEM
    1. Clean the back door panel surface.
      1. Using a heat light, heat the back door panel surface.
      2. Remove any remaining double-sided tape from the back door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Install a new symbol emblem.
      1. Using a heat light, heat the back door panel surface.
      2. Remove the release paper from the symbol emblem.

        HINT:

        After removing the release paper, keep the exposed adhesive free from foreign matter.

      3. Engage the 2 pins and install the symbol emblem.

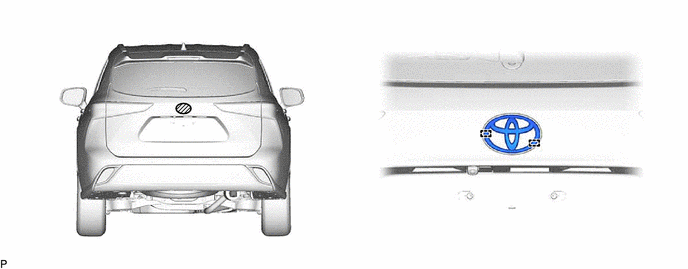

        GTY892621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Press the symbol emblem to install it.
