Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE ROOF RACK ASSEMBLY

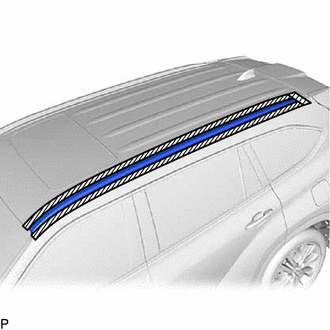

    1. Apply protective tape around the roof rack assembly.
      GTY917864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

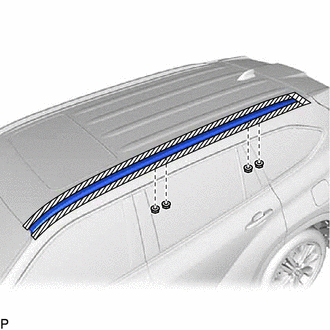

    2. Remove the 4 nuts.
      GTY897751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

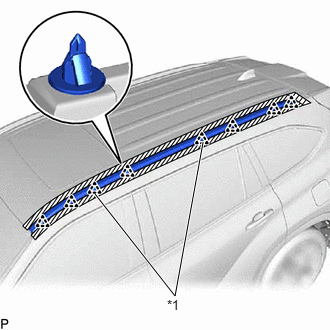

    3. Disengage the 6 clips and 2 front roof rack retainers to remove the roof rack assembly.
      GTY1006586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Roof Rack Retainer
    4. Remove the 6 clips and 2 front roof rack retainers from the roof rack assembly.
