Removal [10/2022 - 11/2023]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE TOWING SOCKET

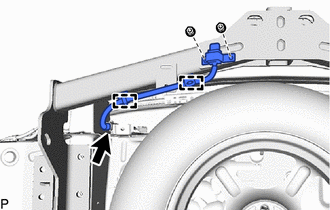

    1. Disconnect the connector.
      GTY1119797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage each clamp.
    3. Remove the 2 nuts and towing socket.
