Components [12/2019 - 10/2022]

WARNING: This page is about a different variant/trim than selected.

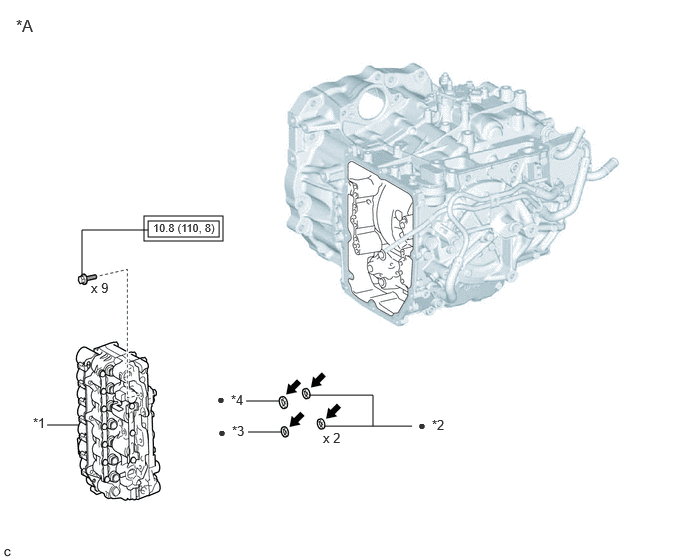

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 3)
GTY922082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/o Stop And Start System - -
*1 TRANSMISSION VALVE BODY ASSEMBLY *2 TRANSAXLE CASE GASKET
*3 NO. 1 FRONT OIL PUMP COVER GASKET *4 NO. 2 FRONT OIL PUMP COVER GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) Non-reusable part
Toyota Genuine ATF WS - -

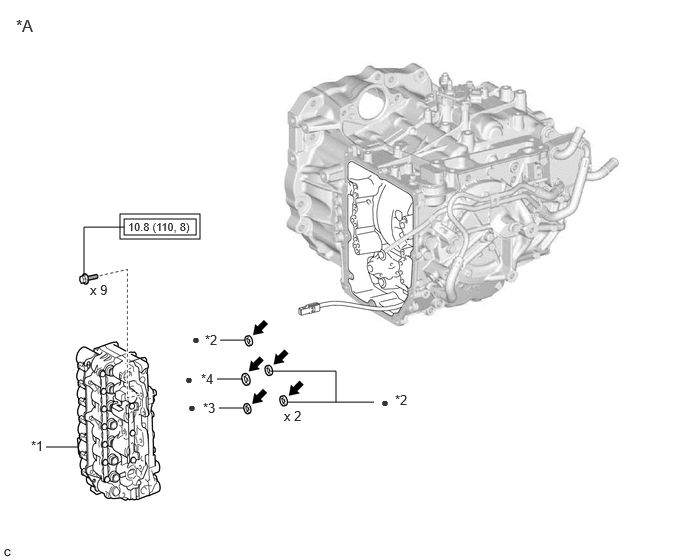

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 3)
GTY905447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Stop And Start System - -
*1 TRANSMISSION VALVE BODY ASSEMBLY *2 TRANSAXLE CASE GASKET
*3 NO. 1 FRONT OIL PUMP COVER GASKET *4 NO. 2 FRONT OIL PUMP COVER GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) Non-reusable part
Toyota Genuine ATF WS - -

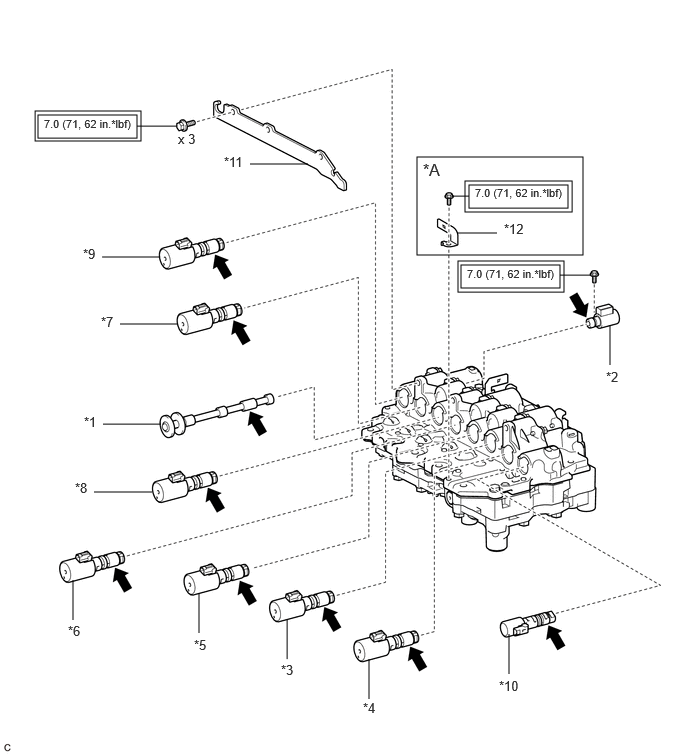

Fig 3: Valve Body Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 3)
GTY867094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A w/ Stop And Start System - -
*1 MANUAL VALVE *2 SOLENOID (SL) VALVE
*3 SOLENOID (SL1) VALVE *4 SOLENOID (SL2) VALVE
*5 SOLENOID (SL3) VALVE *6 SOLENOID (SL4) VALVE
*7 SOLENOID (SL5) VALVE *8 SOLENOID (SL6) VALVE
*9 SOLENOID (SLU) VALVE *10 SOLENOID (SLT) VALVE
*11 SOLENOID LOCK PLATE *12 WIRE HARNESS CLAMP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) Toyota Genuine ATF WS
