Removal [12/2019 - 10/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 8 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 8 [09/2020 - 10/2022]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 9 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 9 [09/2020 - 10/2022]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 10 [09/2020 - 10/2022]

  4. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 11 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 11 [09/2020 - 10/2022]

  5. REMOVE FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 15 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 15 [09/2020 - 10/2022]

  6. REMOVE TRANSMISSION OIL COOLER AIR DUCT

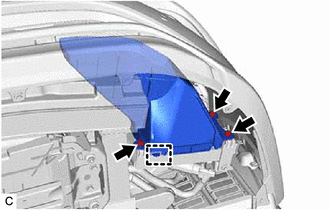

    1. Remove the 3 bolts.
      GTY943612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the transmission oil cooler air duct from the oil cooler assembly.
  7. DISCONNECT OIL COOLER HOSE

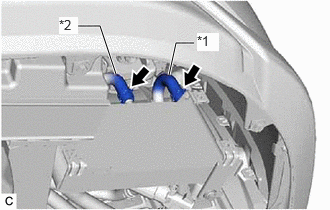

    1. Slide the 2 clips and disconnect the No. 1 transmission oil cooler hose and No. 2 transmission oil cooler hose from the oil cooler assembly.
      GTY929725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Oil Cooler Hose
      *2 No. 2 Transmission Oil Cooler Hose

      HINT:

      Use a container to catch any fluid which flows out of the No. 1 transmission oil cooler hose, No. 2 transmission oil cooler hose and oil cooler assembly.

  8. REMOVE OIL COOLER ASSEMBLY

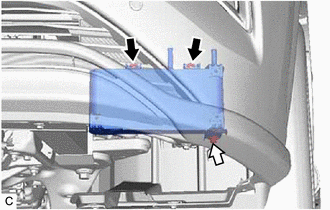

    1. Remove the 2 nuts, bolt and oil cooler assembly from the oil cooler bracket.
      GTY869909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt

      HINT:

      Use a container to catch any fluid which flows out of the oil cooler assembly.

  9. REMOVE TRANSMISSION OIL THERMOSTAT

    HINT:

    Perform this procedure only when replacement of the transmission oil thermostat is necessary.

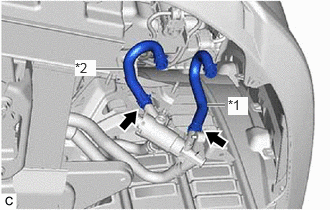

    1. Slide the 2 clips and remove the No. 1 transmission oil cooler hose and No. 2 transmission oil cooler hose from the transmission oil thermostat.
      GTY862661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Transmission Oil Cooler Hose
      *2 No. 2 Transmission Oil Cooler Hose

      HINT:

      Use a container to catch any fluid which flows out of the No. 1 transmission oil cooler hose, No. 2 transmission oil cooler hose and transmission oil thermostat.

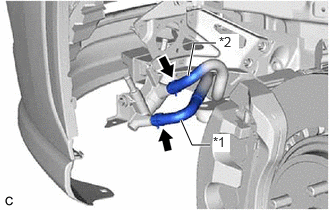

    2. Slide the 2 clips and disconnect the No. 3 transmission oil cooler hose and outlet No. 1 oil cooler hose from the transmission oil thermostat.
      GTY878277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Transmission Oil Cooler Hose
      *2 Outlet No. 1 Oil Cooler Hose

      HINT:

      Use a container to catch any fluid which flows out of the No. 3 transmission oil cooler hose, outlet No. 1 oil cooler hose and transmission oil thermostat.

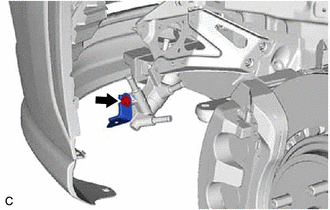

    3. Remove the bolt and oil cooler bracket from the transmission oil thermostat.
      GTY943604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

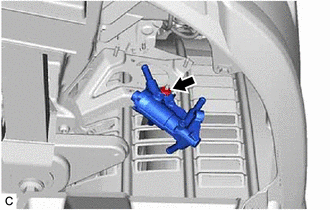

    4. Remove the nut and transmission oil thermostat from the oil cooler bracket.
      GTY917194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a container to catch any fluid which flows out of the transmission oil thermostat.

  10. REMOVE OIL COOLER BRACKET

    HINT:

    Perform this procedure only when replacement of the oil cooler bracket is necessary.

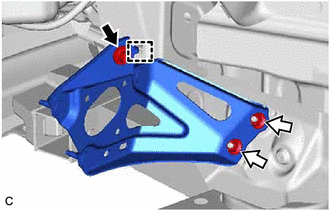

    1. Remove the bolt and 2 nuts and disengage the guide to remove the oil cooler bracket from the vehicle body.
      GTY938450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut
