Components [12/2019 - 10/2022]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

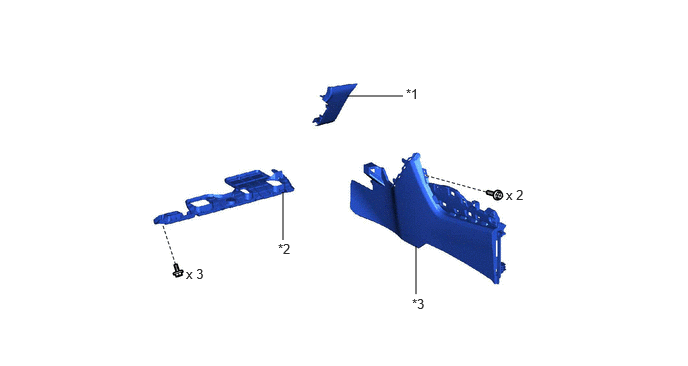

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 SWITCH HOLE BASE | *2 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *3 | FRONT CONSOLE BOX INSERT | - | - |
Fig 3: Transmission Control Cable Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 3)

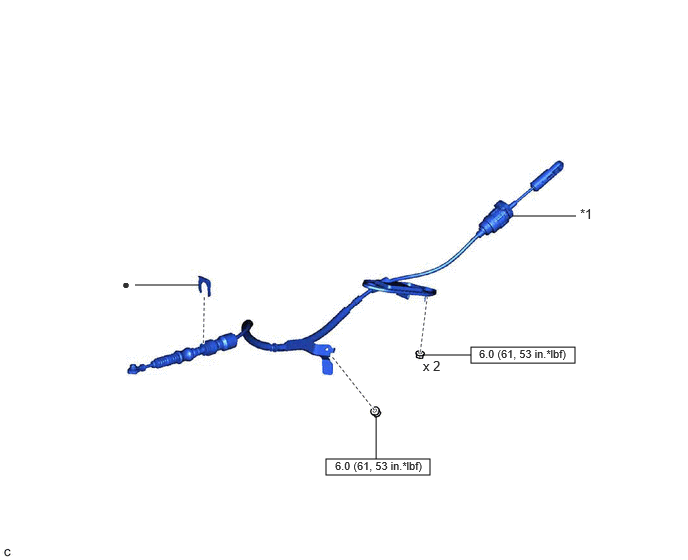

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
