Components [12/2019 - 10/2022]

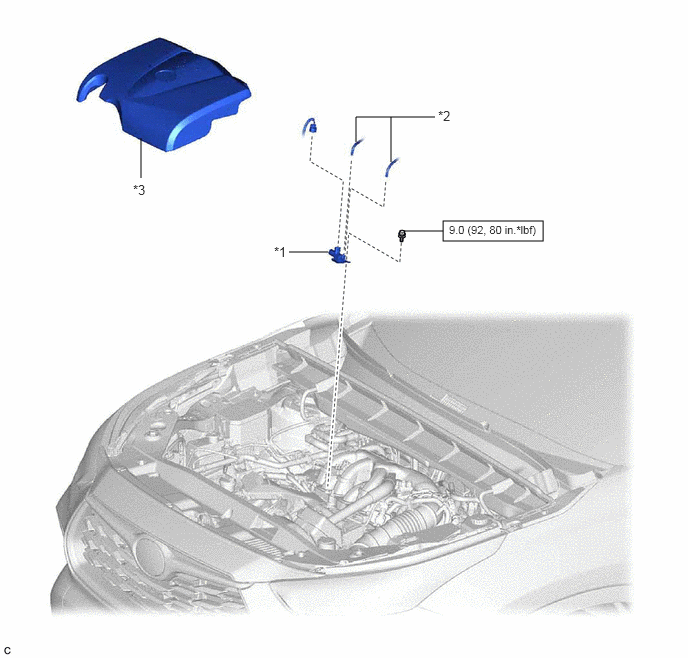

Fig 1: Vacuum Switching Valve (For ACIS) Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for ACIS) | *2 | VACUUM HOSE SUB-ASSEMBLY |
| *3 | V-BANK COVER SUB-ASSEMBLY | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
