DTC B162B: Side Airbag Sensor Assembly No. 2 Lost Communication (RH); DTC B162C: Side Airbag Sensor Assembly No. 2 Initialization Error (RH); DTC B1694: No. 2 Side Satellite Sensor Bus RH Initialization Incomplete [12/2019 - 11/2023]: Procedure
- CHECK CONNECTION OF CONNECTORS
- Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Check that the connectors are properly connected to the airbag sensor assembly and side No. 2 airbag sensor RH.
OK
The connectors are properly connected.
Result
Proceed to OK NG
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- CHECK CONNECTORS
- Disconnect the connectors from the airbag sensor assembly and side No. 2 airbag sensor RH.
- Check that the terminals of the connectors are not deformed or damaged.
OK
The terminals are not deformed or damaged.
Result
Proceed to OK NG
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 3
- CHECK FLOOR WIRE
- Connect the cable to the negative (-) auxiliary battery terminal.

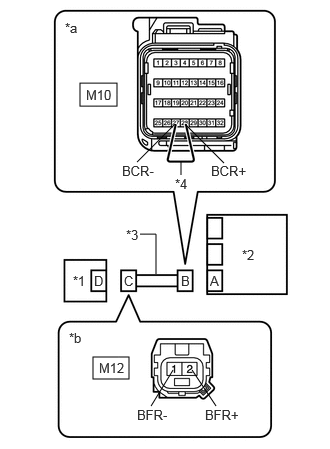

*1 Side No. 2 Airbag Sensor RH *2 Airbag Sensor Assembly *3 Floor Wire *4 Service Wire *a Front view of wire harness connector
(to Airbag Sensor Assembly)*b Front view of wire harness connector
(to Side No. 2 Airbag Sensor RH) - Turn the ignition switch to ON.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition M12-2 (BFR+) - Body ground Ignition switch ON Below 1 V M12-1 (BFR-) - Body ground Ignition switch ON Below 1 V - Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Using a service wire, connect terminals 28 (BCR+) and 27 (BCR-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition M12-2 (BFR+) - M12-1 (BFR-) Always Below 1 Ω - Disconnect the service wire from connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition M12-2 (BFR+) - M12-1 (BFR-) Always 1 MΩ or higher M12-2 (BFR+) - Body ground Always 1 MΩ or higher M12-1 (BFR-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 4
- Connect the cable to the negative (-) auxiliary battery terminal.
- CHECK SIDE NO. 2 AIRBAG SENSOR RH
- Connect the connector to the airbag sensor assembly.
*1 Side No. 2 Airbag Sensor LH *2 Airbag Sensor Assembly - Interchange the side No. 2 airbag sensor RH with LH and connect the connectors.
- Connect the cable to the negative (-) auxiliary battery terminal.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Body Electrical > SRS Airbag > Clear DTCs
- Turn the ignition switch off.
- Turn the ignition switch to ON, and wait for at least 60 seconds.
- Check for DTCs.
Body Electrical > SRS Airbag > Trouble Codes
HINT:
Codes other than DTCs B162B, B162C, B163B, B163C, B1694 and B1699 may be output at this time, but they are not related to this check.
Result
Result Proceed to DTC B162B, B162C or B1694 is output. A DTC B163B, B163C or B1699 is output. B DTCs B162B, B162C, B163B, B163C, B1694 and B1699 are not output. C - Turn the ignition switch off.
- Disconnect the cable from the negative (-) auxiliary battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- Return the side No. 2 airbag sensor RH and LH to their original positions and connect the connectors.
Result:
A
REPLACE AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]
Result:
B
REPLACE SIDE NO. 2 AIRBAG SENSOR RH. Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]
Result:
C
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]
- Connect the connector to the airbag sensor assembly.
