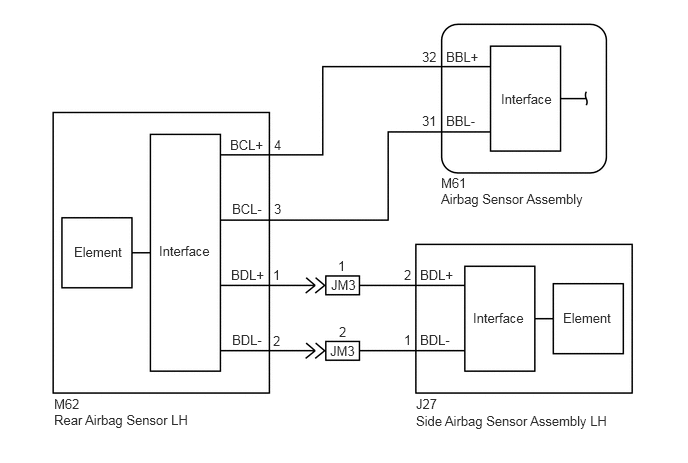

DTC B1647: Side Satellite Sensor Bus Lost Communication (LH); DTC B1648: Side Satellite Sensor Bus Initialization Error (LH) [12/2019 - 11/2023]: Wiring Diagram

GTY917040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
