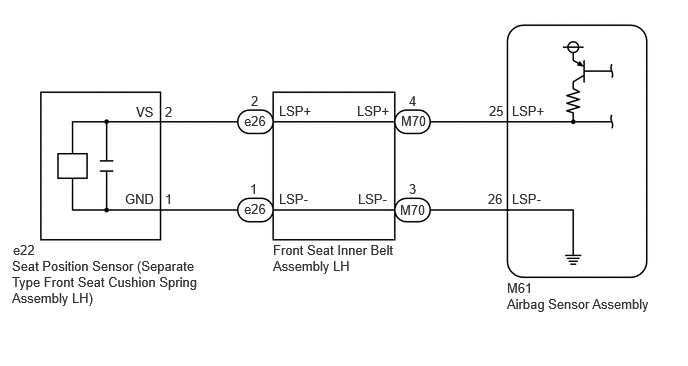

DTC B1653: Driver Side Seat Position Sensor [12/2019 - 11/2023]: Wiring Diagram

GTY865851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
