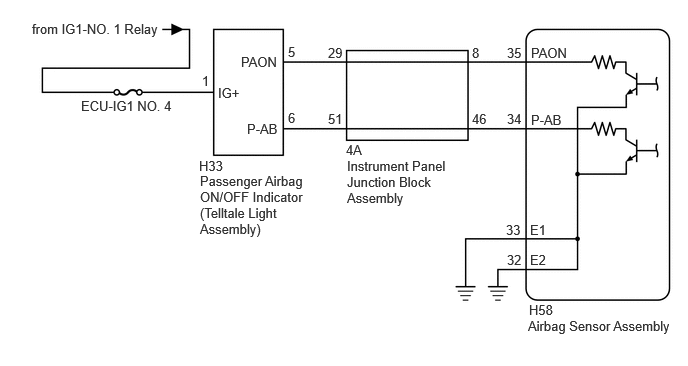

DTC B1660: P Seat Airbag Active Mode Indicator [12/2019 - 10/2022]: Wiring Diagram

GTY884742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
