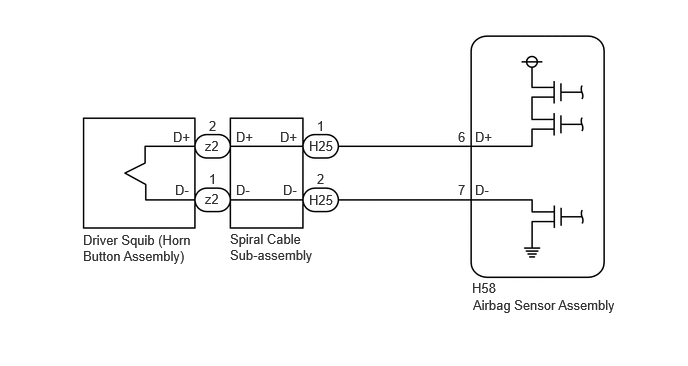

DTC B1800: Short in D Squib Circuit; DTC B1801: Open in D Squib Circuit; DTC B1802: Short in D Squib Circuit (to Ground); DTC B1803: Short in D Squib Circuit (to +B) [12/2019 - 11/2023]: Wiring Diagram

GTY890330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
