DTC B009B-87: Left Side Restraints Sensor 5 Missing Message [11/2023 - ]: Procedure

  1. CHECK DTC

    Pre-procedure1

    1. Turn the ignition switch to ON, and wait for at least 60 seconds.

      Procedure1

    2. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result Proceed to
      B0093-87 and B009B-87 are output A
      B009B-87 is output B
      B0093-87 and B009B-87 are not output C

      Post-procedure1

    3. None

    Result:

    A

    GO TO DTC B0093-87. Refer to  DTC B0093-87: Left Side Restraints Sensor 3 Missing Message [11/2023 - ]

    Result:

    C

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]

    Result:

    B

    See step  2

  2. CHECK CONNECTION OF CONNECTORS

    Pre-procedure1

    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

      Procedure1

    3. Check that the connectors are properly connected to the rear airbag sensor LH and side airbag sensor assembly LH.

      OK

      The connectors are properly connected.

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (CHECK FOR OPEN IN THE CIRCUIT)

    Pre-procedure1

    1. Disconnect the rear airbag sensor LH connector.

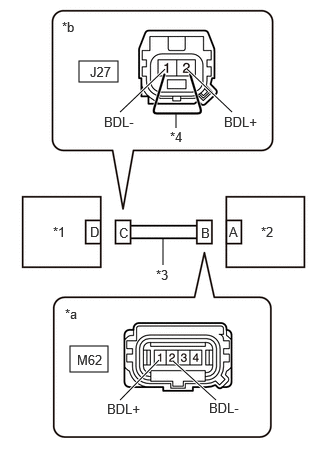

      GTY1178120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Side Airbag Sensor Assembly LH
      *2 Rear Airbag Sensor LH
      *3 Wire Harness
      *4 Service Wire
      *a Front view of wire harness connector
      (to Rear Airbag Sensor LH)
      *b Front view of wire harness connector
      (to Side Airbag Sensor Assembly LH)
    2. Disconnect the side airbag sensor assembly LH connector.
    3. Using a service wire, connect terminals 2 (BDL+) and 1 (BDL-) of connector C.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

      Procedure1

    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      M62-1 (BDL+) - M62-2 (BDL-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    5. Disconnect the service wire from connector C.

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  4

  4. CLEAR DTC

    Pre-procedure1

    1. Connect the rear airbag sensor LH connector.
      GTY1006141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Side Airbag Sensor Assembly RH
      *2 Rear Airbag Sensor LH
      *3 Wire Harness
    2. Interchange the side airbag sensor assembly LH with RH and connect the connectors to them.
    3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    4. Turn the ignition switch to ON, and wait for at least 60 seconds.

      Procedure1

    5. Clear the DTCs stored in memory.

      Body Electrical > SRS Airbag > Clear DTCs

      Result

      Proceed to
      NEXT

      Post-procedure1

    6. Turn the ignition switch off.

    Result:

    NEXT

    See step  5

  5. CHECK SIDE AIRBAG SENSOR ASSEMBLY LH

    Pre-procedure1

    1. Turn the ignition switch to ON, and wait for at least 60 seconds.

      Procedure1

    2. Check for DTCs.

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Result Proceed to
      B009B-87 is output A
      B009E-87 is output B
      B009B-87 and B009E-87 are not output C

      HINT:

      Codes other than DTCs B009B-87 and B009E-87 may be output at this time, but they are not related to this check.

      Post-procedure1

    3. Turn the ignition switch off.
    4. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
    5. Return the side airbag sensor assembly RH and LH to their original positions and connect the connectors to them.

    Result:

    A

    REPLACE REAR AIRBAG SENSOR LH. Refer to  REMOVAL [11/2023 - ]

    Result:

    B

    REPLACE SIDE AIRBAG SENSOR ASSEMBLY LH. Refer to  REMOVAL [11/2023 - ]

    Result:

    C

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]
