Caution / Notice / Hint

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2023 - ]
After replacing the airbag sensor assembly, refer to work procedure.
Refer to WORK PROCEDURE [11/2023 - ]

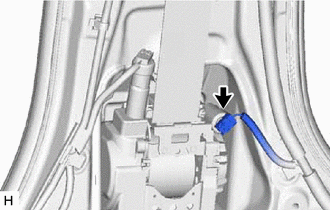

2 identical squib connectors are connected to the front seat outer belt assembly RH. The selectable force limiter squib RH connector is indicated by the arrow in the illustration.

HINT:

To perform the simulation method, enter check mode (signal check) with the GTS.
Refer to CHECK MODE PROCEDURE [11/2023 - ]
Perform the simulation method while checking the Data List.
Refer to DATA LIST / ACTIVE TEST [11/2023 - ]
